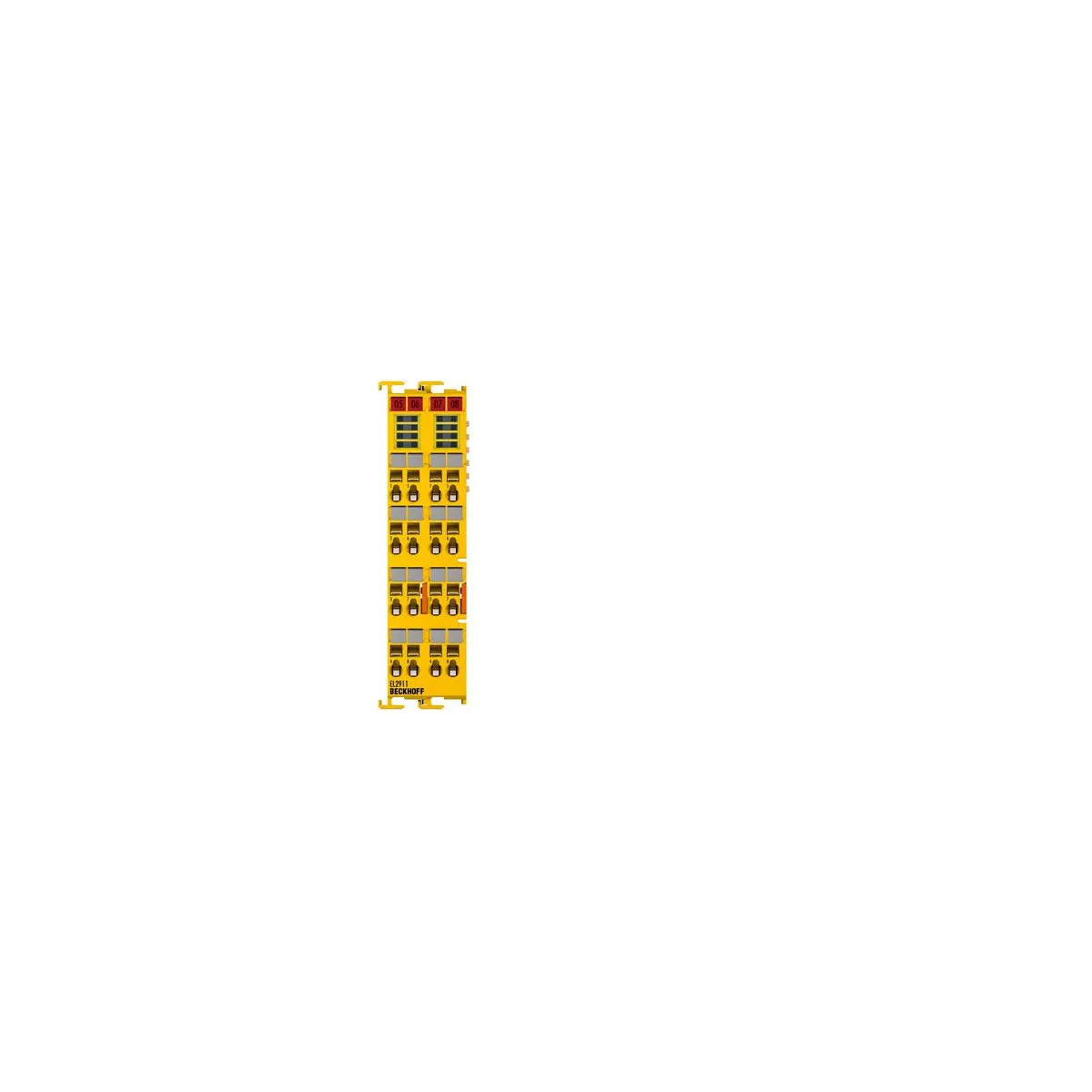

BECKHOFF EL2901 Potential Supply Terminal
Technical Datasheets / Product Documentations
- No technical documentation is available for this product at the moment. Contact us for more information.
| Brand |  |
| Category | Terminal |
| Product Name | BECKHOFF EL2901 Potential Supply Terminal |
| Product Code | EL2901 |
Contact with us! 24 business hours (excluding weekends and holidays) to confirm stock status and estimated delivery time.
Product Description
BECKHOFF products, including BECKHOFF EL2901 Potential Supply Terminal, are sourced through parallel import channels and delivered to our customers worldwide with speed and reliability. As an authorized trading partner, Imtek Engineering offers genuine BECKHOFF parts at competitive prices. Even if BECKHOFF EL2901 Potential Supply Terminal is not listed on our website, you are welcome to request a price quote — our team will respond promptly with a tailored offer.
The EL2901 Safety EtherCAT Terminal is a potential power supply terminal and enables the setting up of TwinSAFE groups with safe power supply (24 V DC, up to 10 A). If the TwinSAFE Terminal detects a fault, it switches to safe state (fail safe). Safe potential groups can be created within a terminal strand using the EL2901. The EL2901 meets the requirements of IEC 61508 SIL 3 and DIN EN ISO 13849 PLe.
| Technical data | EL2901 |
|---|---|
| Technology | potential supply terminal |
| Safety standard | IEC 61508 SIL 3 and DIN EN ISO 13849-1:2008 PLe |
| Protocol | TwinSAFE/Safety over EtherCAT |
| Status display | 5 LEDs: 1 power, 4 diagnostic |
| Current consumption E-bus | approx. 221 mA |
| Fault response time | ≤ watchdog time (parameterisable) |
| Bit width in the process image | input: 6 byte; output: 6 byte |
| Supply voltage | 24 V DC (-15 %/+20 %) |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| Current load | ≤ 10 A |
| Power LED | green |
| Electrical isolation | 500 V |
| Special features | safe power supply |
| Weight | approx. 90 g |
| Operating/storage temperature | 0…+55 °C/-25…+70 °C |
| Permiss. degree of contamin. | 2 |
| Climate class EN 60721-3-3 | 3K3 |
| Electrical interference | EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | EN 60068-2-6/EN 60068-2-27 |
| Installation position | horizontal |
| Protection class | IP 20 |
