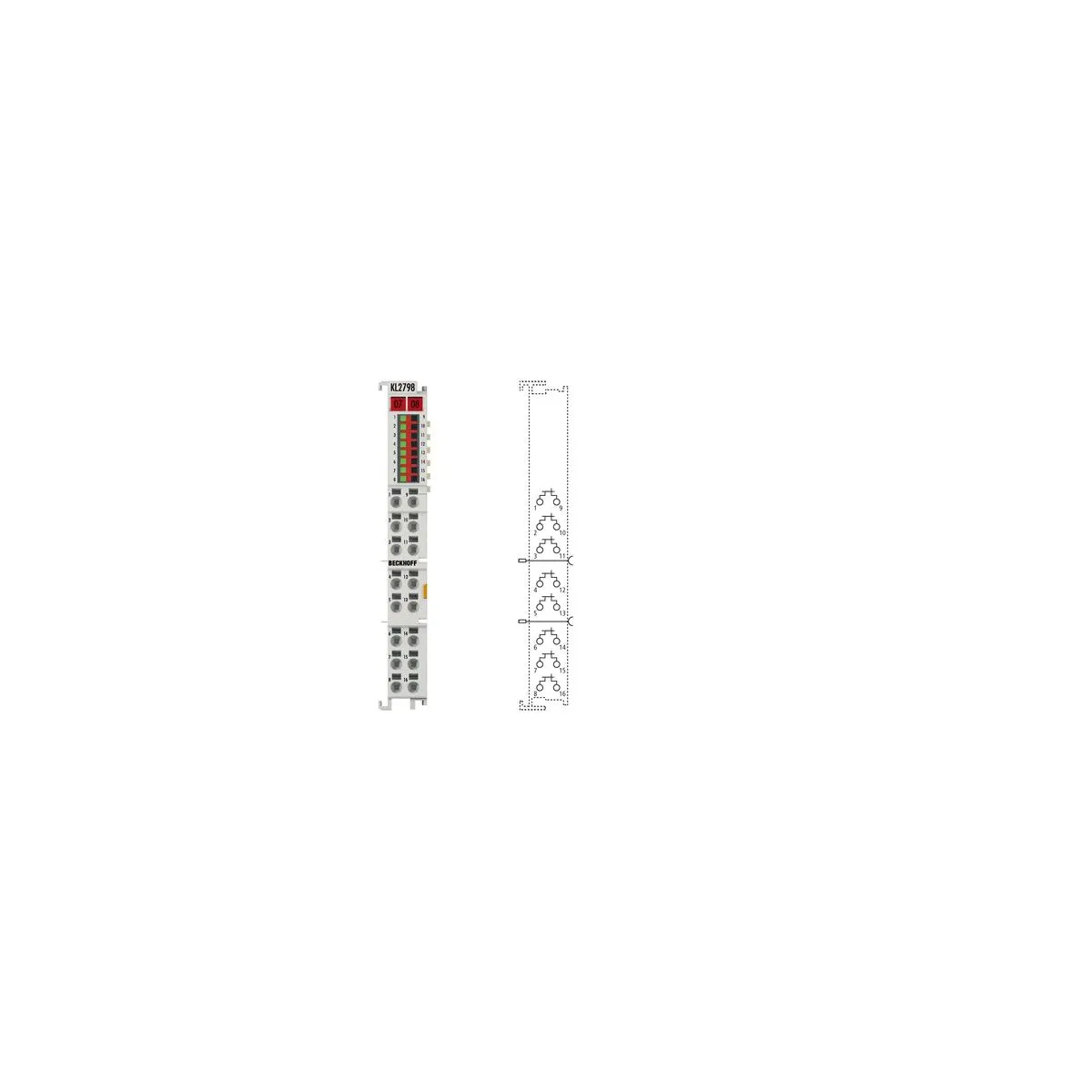

BECKHOFF KL2798 HD Bus Terminal
Technical Datasheets / Product Documentations
- No technical documentation is available for this product at the moment. Contact us for more information.
| Brand |  |
| Category | Terminal |
| Product Name | BECKHOFF KL2798 HD Bus Terminal |
| Product Code | KL2798 |
Contact with us! 24 business hours (excluding weekends and holidays) to confirm stock status and estimated delivery time.
Product Description
BECKHOFF products, including BECKHOFF KL2798 HD Bus Terminal, are sourced through parallel import channels and delivered to our customers worldwide with speed and reliability. As an authorized trading partner, Imtek Engineering offers genuine BECKHOFF parts at competitive prices. Even if BECKHOFF KL2798 HD Bus Terminal is not listed on our website, you are welcome to request a price quote — our team will respond promptly with a tailored offer.
The digital KL2798 Bus Terminal provides eight switches that can be used like a relay contact for AC/DC voltages. The electronic switch is realised through high-performance MOSFET transistors with low switch-on resistance. The switch itself is not short-circuit-proof, but due to its high pulse current capability it can cope with current until an external fuse triggers a switch-off.
Wear resistance increases the availability of the application. Resistive and inductive loads can be switched up to a rated voltage of 30 V AC/DC, completely resistive loads also up to a rated voltage of 48 V DC.
High peak voltages and electromagnetic interference pulses are prevented.
| Technical data | KL2798 |
|---|---|
| Connection technology | 2-wire |
| Number of outputs | 8 x make contacts |
| Rated load voltage | 0…30 V AC/DC (only ohmic load: 0…48 V DC) |
| Max. output current | 2 A per channel (∑ 10 A) |
| Breakdown voltage | 80 V |
| Peak current | 5 A (100 ms), < 50 A (10 ms) |
| Short circuit current | not short-circuit-proof, see peak current |
| Reverse voltage protection | – |
| Isolation voltage (channel/channel) | < 200 V |
| Electrical isolation | 500 V (K-bus/field potential) |
| Switching on speed | typ. 1.8 ms, max. 5 ms |
| Switching off speed | typ. 30 ms, max. 50 ms |
| On-resistance | typ. 0.03 Ω |
| Current consumption power contacts | – |
| Current consumption K-bus | 80 mA |
| Bit width in the process image | 8 outputs |
| Conductor types | solid wire, stranded wire and ferrule |
| Conductor connection | solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver |
| Rated cross-section | solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm² |
| Special features | substitute for relay contacts, potential-free |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Approvals | CE, UL |
