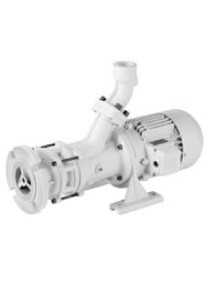

Brinkmann SBG501 Horizontal End-Suction Pump

Brinkmann

Product Code: SBG501
Brand: Brinkmann



GET OFFER: info@imtek.com.tr

Description for Brinkmann SBG501 Horizontal End-Suction Pump

SBG501, 502, 503 – Axial/Semi-open impellersHorizontal End-Suction Pumps are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft. These pumps are not self-priming and must be gravity fed. All pumps are equipped with a single mechanical seal. Upon request a second mechanical seal is available to allow for dry-running (-GD).This pump series is designed for horizontal installations next to a tank and for pumping highly air entrained coolant and cutting oils, as they occur in high speed grinding applications.The SBG pumps are equipped with the user-friendly SAE flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G ¼.For more information see mechanical features within the technical information section.Applications Types of fluid water coolants cooling/cutting oils grinding oilsKinematic viscosity45 mm²/s (45 cSt)Pumping temperature 0 – 80°C ConstructionPump bodyCast ironCoverCast ironImpeller axialCast steelImpeller radialCast steelShaftSteelMechanical sealSiCNoise levelSBG50167 dBASBG50270 dBASBG50372 dBA
