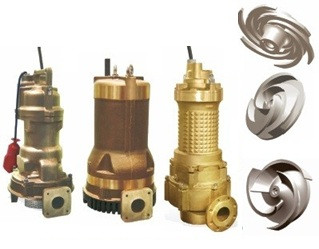

Brinkmann SFT450/300 Free Flow-Immersion Pump
Product Code:SFT450/300
Description
SFT450, 710, 1100, 1300, 1350, 1400 – Semi-open impellers
Free Flow-Immersion Pumps series SFT are designed to lift coolant for filtering. Coarse shreds can be transported together with liquids. The pump inlet and pump discharge port have the same dimensions.
The SFT serie offers a flange with pressure gauge connection port. The flange can be rotated for either horizontal or vertical pipe connections.
Applications
Types of fluid
Max. chip to coolant ratio by weight:
1.5 %Chip material:
Aluminium, steel, coloured steelsChip geometry:
Flow chips up until 80 mm longKinematic viscosity
…30 mm²/s (30 cSt)On request higher viscosityPumping temperature
0 – 60°CConstructionPump bodyCast ironCoverSpecial cast ironImpellerCast steelShaftSteelOptional-CL with axial impeller for lower liquid levelCast steel
Technical Specifications
SFT450, 710, 1100, 1300, 1350, 1400 – Semi-open impellers
Free Flow-Immersion Pumps series SFT are designed to lift coolant for filtering. Coarse shreds can be transported together with liquids. The pump inlet and pump discharge port have the same dimensions.
The SFT serie offers a flange with pressure gauge connection port. The flange can be rotated for either horizontal or vertical pipe connections.
Applications
Types of fluid
- coolants
Max. chip to coolant ratio by weight:
- 1.5 %
Chip material:
- Aluminium, steel, coloured steels
Chip geometry:
- Flow chips up until 80 mm long
Kinematic viscosity
- …30 mm²/s (30 cSt)
- On request higher viscosity
Pumping temperature
- 0 – 60°C
| Construction | |
| Pump body | Cast iron |
| Cover | Special cast iron |
| Impeller | Cast steel |
| Shaft | Steel |
| Optional | |
| -CL with axial impeller for lower liquid level | Cast steel |
