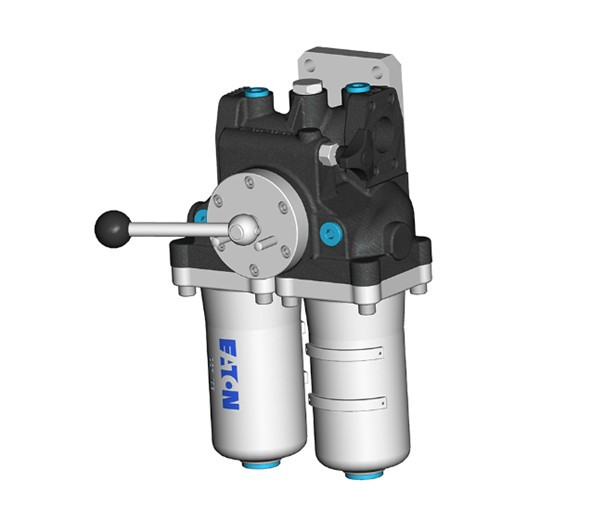

Product Name: Eaton DSF 10005 Duplex Filter
Brand: Eaton
Product Code: DSF 10005
Tags: Eaton
10005 Duplex
Eaton Duplex Filter
DSF Duplex
Eaton DSF Duplex
DSF 10005
Filter
Eaton Duplex
Eaton DSF 10005 Duplex
Duplex
Filter
Eaton 10005
Eaton DSF
Duplex Filter
Eaton 10005 Duplex Filter
DSF 10005 Duplex
Duplex Filter
Are you interested in the product Eaton DSF 10005 Duplex Filter from manufacturer Eaton with code DSF 10005? Contact us now and get offer. Imtek Engineering, the fastest and most reliable industrial equipment supplier in the world, will offer you the best offer!
Get Offer With E-Mail: info@im-tek.com
Get a offer for Eaton DSF 10005 Duplex Filter from our live support team now!
Pressure filter change over series DSF have a working pressure up to 363 psi (25 bar). Pressure peaks can be absorbed with a sufficient safety margin. A three-way-change-over valve which is integrated in the middle of the housing makes it possible to switch from the dirty filter-side to the clean filter-side without interrupting operation. The filters can be installed as suction filter, pressure filter or return-line filter.FILTER TYPEInline mountedMAX. OPERATING PRESSURE363 psi (25 bar)OPERATING TEMPERATURE14-212 °F (-10-100 °C) Core features Changeover valve High intrinsic stability Excellent filtration capability High dirt-retaining capacity Long service life · Suitable for petroleum based fluids· HW-emulsions· Water glycols· Most synthetic hydraulic fluids and lubrication oils SPECIFICATIONS operating temperature: +14°F to +212°F operating medium: mineral oil, other media on request max. operating pressure: 363 PSI test pressure: 725 PSI process connection: SAE-flange connection 3000 PSI or thread connection housing material: EN-GJS-400-18-LT sealing material: Nitrile (NBR) or Viton (FPM), other materials on request installation position: vertical
