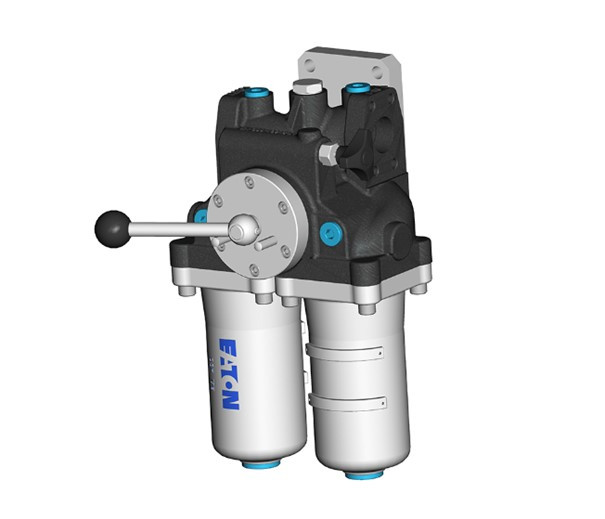

Eaton DSF 3601 Duplex Filter

Eaton

Product Code: DSF 3601
Brand: Eaton



GET OFFER: info@imtek.com.tr

Description for Eaton DSF 3601 Duplex Filter

Pressure filter change over series DSF have a working pressure up to 363 psi (25 bar). Pressure peaks can be absorbed with a sufficient safety margin. A three-way-change-over valve which is integrated in the middle of the housing makes it possible to switch from the dirty filter-side to the clean filter-side without interrupting operation. The filters can be installed as suction filter, pressure filter or return-line filter.FILTER TYPEInline mountedMAX. OPERATING PRESSURE363 psi (25 bar)OPERATING TEMPERATURE14-212 °F (-10-100 °C) Core features Changeover valve High intrinsic stability Excellent filtration capability High dirt-retaining capacity Long service life ·         Suitable for petroleum based fluids·         HW-emulsions·         Water glycols·         Most synthetic hydraulic fluids and lubrication oils SPECIFICATIONS operating temperature: +14°F to +212°F operating medium: mineral oil, other media on request max. operating pressure: 363 PSI test pressure: 725 PSI process connection: SAE-flange connection 3000 PSI or thread connection housing material: EN-GJS-400-18-LT sealing material: Nitrile (NBR) or Viton (FPM), other materials on request installation position: vertical
