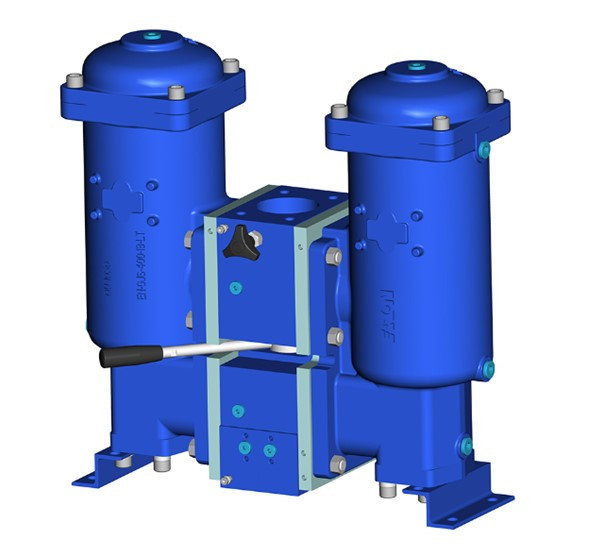

Eaton DUV 1050 Duplex Filter

Eaton

Product Code: DUV 1050
Brand: Eaton



GET OFFER: info@imtek.com.tr

Description for Eaton DUV 1050 Duplex Filter

Eaton´s  Pressure filters, change-over series DUV with vertical port configurations are suitable for operating pressure up to 464 psi (32 bar). Pressure peaks can be absorbed with a sufficient margin of safety. Change-over ball valve between the two filter housings makes it possible to switch from the dirty filter-side to the clean filter-side without interrupting operation. FILTER TYPEInline mountedMAX. OPERATING PRESSURE464 psi (32 bar)OPERATING TEMPERATURE14-176 °F (-10-80 °C) Core features Change-over valve High intrinsic stability Excellent filtration capability High dirt-retaining capacity Long service life Applications·         Suitable for petroleum based fluids·         HW-emulsions·         Water glycols·         Most synthetic hydraulic fluids and lubrication oils.SPECIFICATIONS temperature range: + 14°F to + 176°F (for a short time + 212°F) operating medium: mineral oil, other media on request max. operating pressure: 464 PSI test pressure: 900 PSI connection system: SAE-flange connection 3000 PSI housing material: EN-GJS-400-18-LT switching housing -material: S355J2G3 sealing material: Nitrile (NBR) or Viton (FPM), other materials on request installation position: vertical mini-measuring connections: ¼ BSPP evacuation-or bleeder connections: ½ BSPP volume tank: 2x 1.5 Gal
