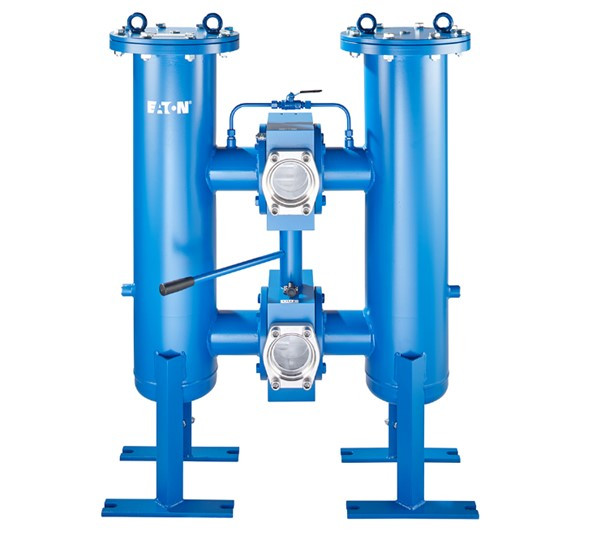

Eaton DWFA 4505 Duplex Filter

Eaton

Product Code: DWFA 4505
Brand: Eaton



GET OFFER: info@imtek.com.tr

Description for Eaton DWFA 4505 Duplex Filter

DWFA (ASME Design)Eaton´s Pressure filter change over series DWFA have a working pressure up to 232 psi (16 bar). Pressure peaks can be absorbed with a sufficient safety margin. A three-way-change-over valve which is integrated in the middle of the housing makes it possible to switch from the dirty filter-side to the clean filter-side without interrupting operation.FILTER TYPEInline mountedMAX. OPERATING PRESSURE232 psi (16 bar)OPERATING TEMPERATURE14-176 °F (-10-80 °C) Core features Changeover valve High intrinsic stability Excellent filtration capability High dirt-retaining capacity Long service life. Applications Suitable for petroleum based fluids HW-emulsions Most synthetic hydraulic fluids and lubrication oils SPECIFICATIONS operating temperature: 14 °F to +212 °F operating medium: mineral oil, other media on request max. operating pressure: 232 PSI test pressure acc. to ASME VIII Div. 1: 1,3 x operating pressure = 302 PSI test pressure acc. to API 614, Chapter 1: 1,5 x operating pressure = 348 PSI standard process connection: SAE-flange 3000 PSI housing material carbon steel (ASTM) housing material changeover 4“: carbon steel housing material changeover 5“: EN-GJS-400-18-LT sealing material: Nitrile (NBR) or Viton (FPM), other materials on request installation position: vertical drain- and bleeder connections: NPT ½” measure connections: BSPP ¼” operating pressure adapter flanges: according to B16.5 CLASS 150 PSI
