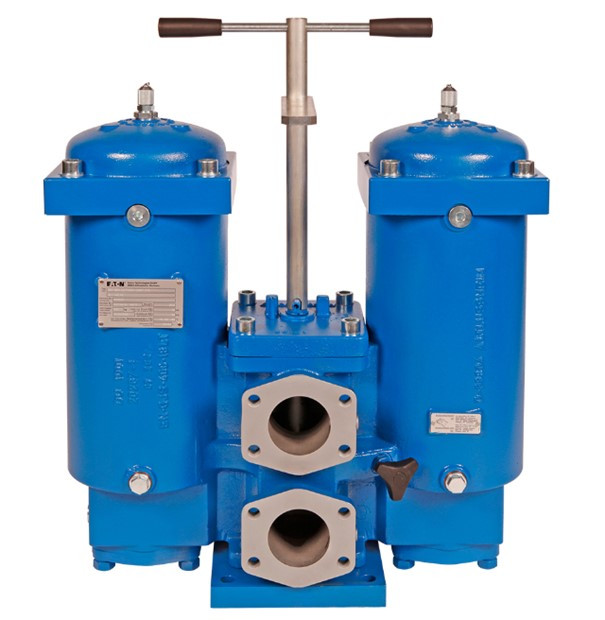

Eaton EDA 1006 Duplex Filter

Eaton

Product Code: EDA 1006
Brand: Eaton



GET OFFER: info@imtek.com.tr

Description for Eaton EDA 1006 Duplex Filter

EDA (ASME Design)The duplex configuration of the newly designed EDA series filter can operate continuously, eliminating the need to shut down for cleaning or service. When a filter element change out or service is required, the user can divert the filtration flow from one side to the other. A pressure equalization system assures consistent pressure while the flow is being transferred.FILTER TYPEInline mountedMAX. OPERATING PRESSURE580 psi (40 bar)OPERATING TEMPERATURE14-212 °F (-10-100 °C)Core features Changeover valve High intrinsic stability Excellent filtration capability High dirt-retaining capacity Long service life. ASME U stamp is available Applications Suitable for petroleum based fluids HW-emulsions Most synthetic hydraulic fluids and lubrication oils SPECIFICATIONS operating temperature: +14°F to +212°F operating medium: mineral oil, other media on request max. operating pressure (pressure vessel): 580 PSI test pressure acc. to ASME VIII Div. 1: 1,3 x operating pressure = 754 PSI test pressure acc. to API 614, Chapter 1: 1,5 x operating pressure = 870 PSI connection system: SAE-flange 3000 PSI or ANSI-flange B16.5 CLASS 150/300 PSI housing material: stainless steel, see sheet-no. 69578 sealing material: Nitrile (NBR) or Viton (FPM), other materials on request installation position: vertical bleeder connection: NPT ½“ drain connection dirt side: NPT ½“ drain connection clean side: NPT ½“ volume tank: 2x 0.17 Gal. operating pressure adapter flanges: according to B16.5 CLASS 150/300 PSI
