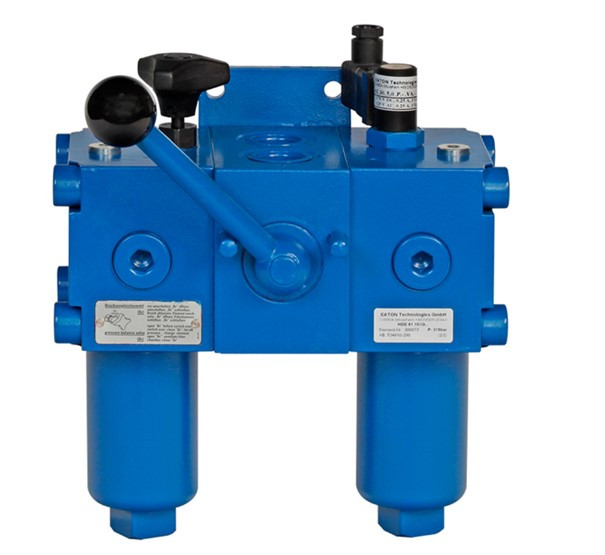

Eaton MDD 40 Duplex Filter
Eaton
Product Code: MDD 40
Brand: Eaton
GET OFFER: info@imtek.com.tr
Description for Eaton MDD 40 Duplex Filter
Pressure filters change over series MDD are suitable for operating pressure up to 2,900 psi (200 bar). The pressure peaks are absorbed by a sufficient margin of safety. Duplex filters can be maintained without interruption. The upper part has a three-way-change-over valve which allows to change-over the flow from the dirty filter-side to the clean filter-side without interrupting the operation.FILTER TYPEInline mountedMAX. OPERATING PRESSURE2,900 psi (200 bar)OPERATING TEMPERATURE14-212 °F (-10-100 °C)Core features Easy to service High intrinsic stability Excellent filtration capability High dirt-retaining capacity Long service life. Applications:· Used for petroleum-based fluids· HW emulsions· Water glycols· Most synthetic fluids and lubrication fluids.SPECIFICATIONS operating temperature: +14 °F to +212 °F operating medium: mineral oil, other media on request max. operating pressure: 2900 PSI test pressure: 4150 PSI process connection: thread connection housing material: C-steel sealing material: Nitrile (NBR) or Viton (FPM), other materials on request installation position: vertical bleeder- and measuring connections dirt side: BSPP ¼ measuring connections clean side: BSPP ½Recommended Products For Eaton
