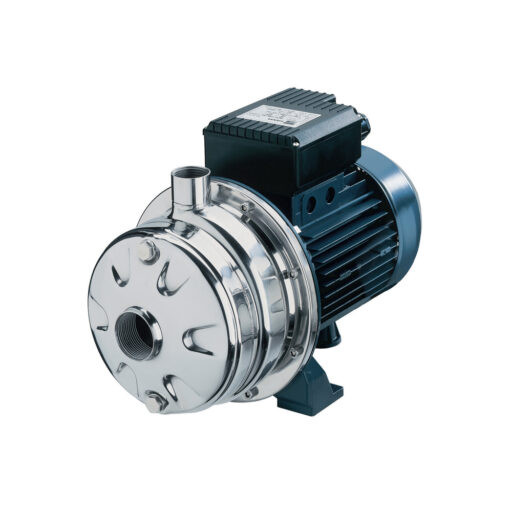

Ebara 2CDX 120/20 Centrifugal Pump

Ebara

Product Code: 2CDX 120/20
Brand: Ebara



GET OFFER: info@imtek.com.tr

Description for Ebara 2CDX 120/20 Centrifugal Pump

Technical dataFlow ratefrom 1.2 to 12.6 m³/hTotal headFrom 71.5 to 27 mMax. working pressure8 barMax. temperature of the liquid-5°C ÷ +60°C for 2CDX(L) std and E versions-5°C ÷ +110°C for H, HS, HW, HSW versionsPoles2Insulation classFProtection degreeIP55VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%MaterialsPump bodyStainless steel AISI 304 (EN 1.4301) (2CDX)Stainless steel AISI 316 (EN 1.4401) (2CDXL)ImpellerStainless steel AISI 304 (EN 1.4301) (2CDX)Stainless steel AISI 316 (EN 1.4401) (2CDXL)ShaftStainless steel AISI 304 (EN 1.4301) (2CDX)Stainless steel AISI 316 (EN 1.4401) (2CDXL)Mechanical sealStandard = Ceramic/Carbon/NBRH = Graphite/Ceramic/FPMHS = Silicon Carbide/Silicon Carbide/FPMHW = Tungsten Carbide/Tungsten Carbide/FPMHSW = Silicon Carbide/Tungsten Carbide/FPME = Graphite/Ceramic/EPDMMotor supportAluminium (up to and including 1.5 kW), cast iron (2.2 kW and above)
