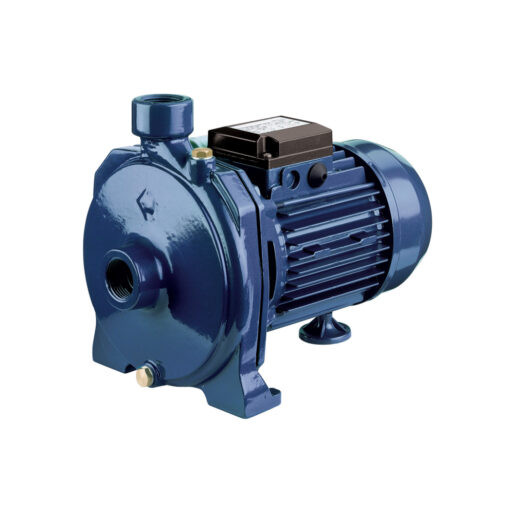

Ebara AGA 0.60 T Self-Priming Centrifugal Pumps

Ebara

Product Code: AGA 0.60 T
Brand: Ebara



GET OFFER: info@imtek.com.tr

Description for Ebara AGA 0.60 T Self-Priming Centrifugal Pumps

Technical dataFlow ratefrom 0.3 to 9.6 m³/hTotal headFrom 16.5 to 68 mMax. working pressure6 bar for AGA 0.60-0.75-1.0010 bar for the rest of the rangeMax. temperature of the liquid45°CMax. suction depth8 mPoles2Insulation classFProtection degreeIP44VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%MaterialsPump bodyCast ironImpellerPPE+PS with glass fibres for AGA 0.60-0.75-1.00,brass for the rest of the rangeShaftStainless steel AISI 303 (EN 1.4305) (part in contact with liquid)Mechanical sealCeramic/Carbon/NBR (standard)Motor supportAluminium for AGA 0.60-0.75-1.00,Cast iron for the rest of the range
