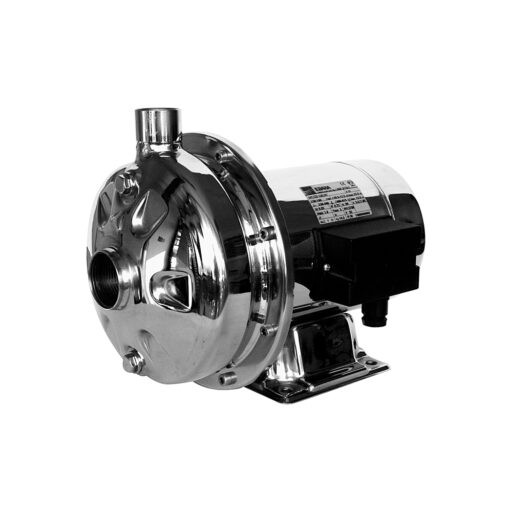

Ebara CD 200/12 Centrifugal Pump
Ebara
Product Code: CD 200/12
Brand: Ebara
GET OFFER: info@imtek.com.tr
Description for Ebara CD 200/12 Centrifugal Pump
Technical dataFlow ratefrom 1.2 to 15 m³/hTotal headFrom 37.5 to 12.5 mMax. working pressure8 barMax. temperature of the liquid-5°C ÷ +60°C for CD 70/05-70/07-90/10 std and E versions-5°C ÷ +90°C for the rest of the std version-5°C ÷ +110°C for H, HS, HW, HSW versions-5°C ÷ +120°C for the rest of E versionMEI> 0.4Poles2Insulation classFProtection degreeIP55VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%MaterialsPump bodyStainless steel AISI 304 (EN 1.4301)ImpellerStainless steel AISI 304 (EN 1.4301)ShaftStainless steel AISI 303 (EN 1.4305)Mechanical sealStandard = Ceramic/Carbon/NBRH = Graphite/Ceramic/FPMHS = Silicon Carbide/Silicon Carbide/FPMHW = Tungsten Carbide/Tungsten Carbide/FPMHSW = Silicon Carbide/Tungsten Carbide/FPME = Graphite/Ceramic/EPDMMotor supportStainless steel AISI 304 (EN 1.4301)Recommended Products For Ebara
