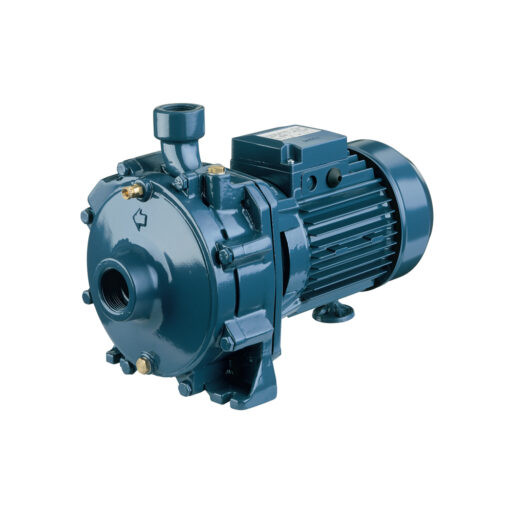

Ebara CDA 1.50 M Centrifugal Pump

Ebara

Product Code: CDA 1.50 M
Brand: Ebara



GET OFFER: info@imtek.com.tr

Description for Ebara CDA 1.50 M Centrifugal Pump

Technical dataMax. working pressure6 bar for CDA 0.75-1.0010 bar for the rest of the rangeMax. temperature of the liquid+40°C for CDA 0.75-1.00,+90°C for the rest of the rangePoles2Insulation classFProtection degreeIP44VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%MaterialsPump bodyCast ironImpellerin PPE+PS with glass fibres for CDA 0.75 - 1.00,in brass for the rest of the rangeShaftin AISI 303 (EN 1.4305) per CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00,in AISI 304 (EN 1.4301) per CDA 4.00 - 5.50Mechanical sealCeramic/Carbon/NBR (standard)Motor supportin aluminium for CDA 0.75 - 1.00in cast iron for the rest of the range
