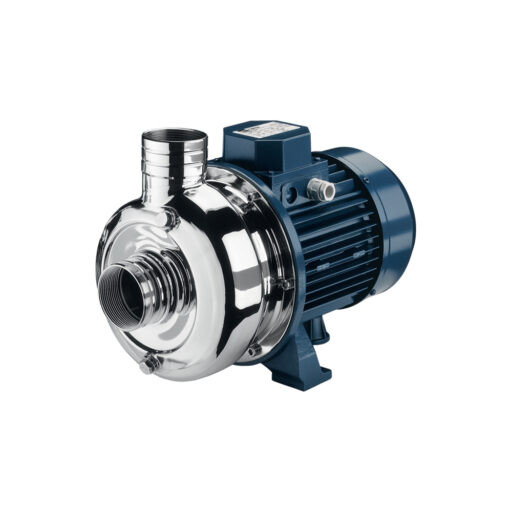

Ebara DWO 400 Centrifugal Pump

Ebara

Product Code: DWO 400
Brand: Ebara



GET OFFER: info@imtek.com.tr

Description for Ebara DWO 400 Centrifugal Pump

Technical dataFlow ratefrom 6 to 66 m³/hTotal head17.5 to 5.1 mMax. working pressure8 barMax. temperature of the liquid15°C ÷ +90°C for std version-15°C ÷ +110°C for H, HS, HW, HSW versionsPoles2Max. solids passage19 mmInsulation classFProtection degreeIP55VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%MaterialsPump bodyStainless steel AISI 304 (EN 1.4301)ImpellerStainless steel AISI 304 (EN 1.4301)ShaftStainless steel AISI 304 (EN 1.4301)Mechanical sealStandard = Ceramic/Carbon/NBRH = Graphite/Ceramic/FPMHS = Silicon Carbide/Silicon Carbide/FPMHW = Tungsten Carbide/Tungsten Carbide/FPMHSW = Silicon Carbide/Tungsten Carbide/FPMMotor supportAluminium
