im-tek.com

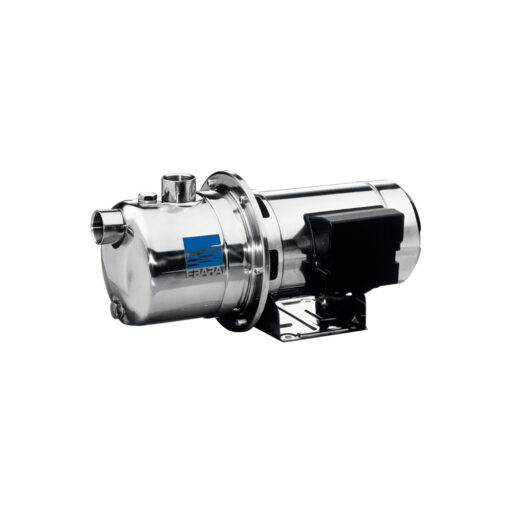

Ebara JEM 120 Self-Priming Centrifugal Pumps

Ebara

Product Code: JEM 120
Brand: Ebara



GET OFFER: info@imtek.com.tr

Description for Ebara JEM 120 Self-Priming Centrifugal Pumps

Technical dataFlow rateFrom 0.3 to 4.5 m³/hTotal headFrom 11.5 to 49 mMax. working pressure6 barMax. temperature of the liquid45°CMax. suction depth8 mPoles2Insulation classFProtection degreeIP44 (IP55 on request)VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%MaterialsPump bodyStainless steel AISI 304 (EN 1.4301)ImpellerStainless steel AISI 304 (EN 1.4301) for JEPPO reinforced with glass fibres for JESShaftStainless steel AISI 303 (EN 1.4305) (part in contact with liquid)Mechanical sealCeramic/Carbon/NBR (standard)Motor supportStainless steel AISI 304 (EN 1.4301)
