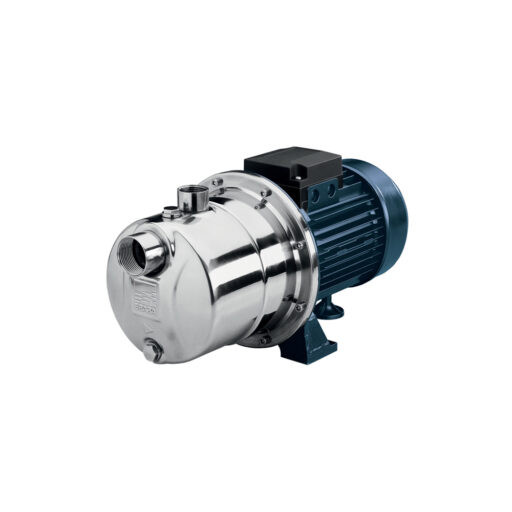

Ebara JESX 056 Self-Priming Centrifugal Pumps

Ebara

Product Code: JESX 056
Brand: Ebara



GET OFFER: info@imtek.com.tr

Description for Ebara JESX 056 Self-Priming Centrifugal Pumps

Technical dataFlow rateFrom 0.3 to 4.5 m³/hTotal headFrom 11.5 to 49 mMax. working pressure6 barMax. temperature of the liquid45°CMax. suction depth8 mPoles2Insulation classFProtection degreeIP54 (IP55 on request)VoltageSingle-phase 1~230V ±10%Three-phase 3~230/400V ±10%MaterialsPump bodyStainless steel AISI 304 (EN 1.4301)ImpellerStainless steel AISI 304 (EN 1.4301) for JEXPPE+PS with glass fibres for JESXShaftStainless steel AISI 303 (EN 1.4305) (part in contact with liquid)Mechanical sealCeramic/Carbon/NBR (standard)Motor supportAluminium
