EKF C32-FIO Front Panel I/O Expansion Board

EKF

Product Code: EKF C32-FIO Front Panel I/O Expansion Board
Artikelnummer: C32-FIO
Brand: EKF



GET OFFER: info@imtek.com.tr

Description for EKF C32-FIO Front Panel I/O Expansion Board

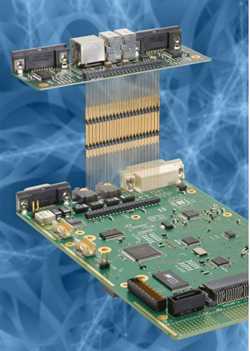

The C32-FIO is a third floor mezzanine module with miscellaneous legacy front panel I/O, residing on the CCO-CONCERT expansion side board, which in turn is mounted on a suitable EKF CompactPCI CPU card. The C32-FIO provides two TIA/EIA RS-232 COM port connectors, two USB receptacles, and a Mini-DIN connector, shared for classic PS/2 style keyboard and mouse peripheral devices.With exception of two RS-232 transceivers, the C32-FIO is basically a passive board. I/O signals are passed through the mezzanine connector J-FIO to the front panel connectors, using only some EMC filtering and ESD protection components. Typically, the C32-FIO and associated boards come as a 12HP front panel assembly (this results from 4HP for the CPU (basement), 4HP for the side card (2nd floor), and another 4HP for the C32-FIO (3rd floor).
