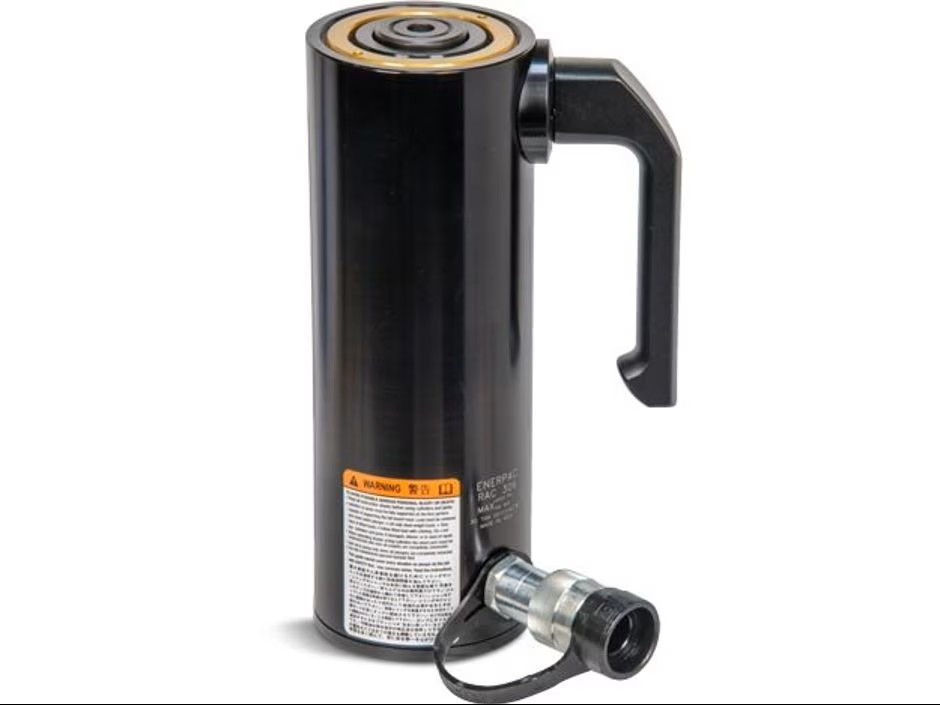

Enerpac RAC306 Cylinder
Technical Datasheets / Product Documentations
| Brand |  |
| Category | Cylinder |
| Product Name | Enerpac RAC306 Cylinder |
| Product Code | Unspecified |
Contact with us! 24 business hours (excluding weekends and holidays) to confirm stock status and estimated delivery time.
Product Description
Enerpac products, including Enerpac RAC306 Cylinder, are sourced through parallel import channels and delivered to our customers worldwide with speed and reliability. As an authorized trading partner, Imtek Engineering offers genuine Enerpac parts at competitive prices. Even if Enerpac RAC306 Cylinder is not listed on our website, you are welcome to request a price quote — our team will respond promptly with a tailored offer.
Lightweight for Maximum Portability Saddles All RAC cylinders are equipped with bolt-on
removable saddles of hardened steel.
Lightweight Hand Pumps Enerpac hand pumps P-392 or P-802 make the optimal
lightweight set.
Page:
70
• Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads
of up to 10%
• Hard coat finish on all surfaces resists damage and extends cylinder life
• Handles included on all models 30 tons and above
• For protection against load-induced damage, a saddle is standard on all models and a steel baseplate is standard on
models 20-ton and above. The steel baseplate is optional only on 10- and 15-ton models
• Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
• High-strength return spring for rapid cylinder retraction
• CR-400 coupler and dust cap included on all models
• All cylinders meet ASME B-30.1 standards
Cylinder Capacity tons (maximum)
10 (9.9) 15 (15.4) 20 (24.2)
30 (34.2)
50 (54.9)
100 (110.9) ◀ Enerpac lightweight aluminum RAC-506 cylinders are ideal for
wet environments such as this tunnel under the river (Holland High-Speed
Train Line).
12
150 (175.9)
Stroke*
Model Number
(in)
1.97 3.94 5.91 1.97 3.94 5.91 1.97 3.94 5.91 7.87 9.84 1.97 3.94 5.91 7.87
9.84 1.97 3.94 5.91 7.87 9.84 1.97 3.94 5.91 7.87 9.84 1.97 3.94 5.91 7.87
9.84
Cylinder Effective Area (in2)
RAC-102 RAC-104 RAC-106 RAC-152 RAC-154 RAC-156 RAC-202 RAC-204 RAC-206 RAC-208
RAC-2010 RAC-302 RAC-304 RAC-306 RAC-308 RAC-3010 RAC-502 RAC-504 RAC-506
RAC-508 RAC-5010 RAC-1002 RAC-1004 RAC-1006 RAC-1008 RAC-10010 RAC-1502 RAC-1504
RAC-1506 RAC-1508 RAC-15010
1.95 1.95 1.95 3.03 3.03 3.03 4.83 4.83 4.83 4.83 4.83 6.85 6.85 6.85 6.85
6.85 10.99 10.99 10.99 10.99 10.99 22.19 22.19 22.19 22.19 22.19 35.18 35.18
35.18 35.18 35.18
* Custom strokes available.
www.enerpac.com
