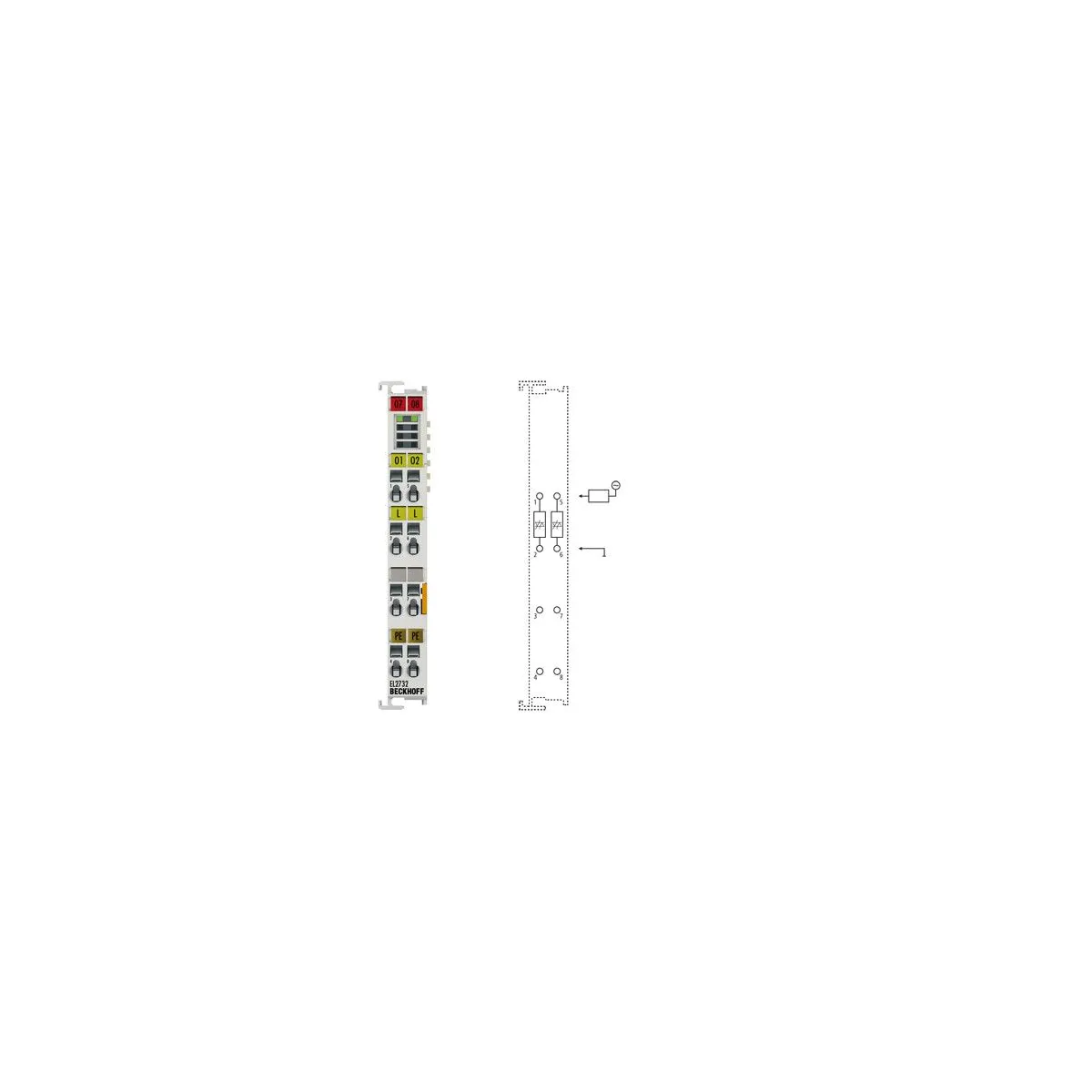

The EL2732 output terminal uses a power switch to control mains voltage from 12 V to 230 V AC. The switching element is a triac, which is connected to the power contact potential. As a semiconductor switch, it is not subject to wear. The steady load capacity of a digital output is 1 A. The EtherCAT Terminal has two independent outputs and indicates its signal state by means of light emitting diodes.
Technical dataEL2732 | ES2732Connection technologytriac output, 2-wireNumber of outputs2 x make contacts (without power contacts), mutually lockedRated load voltage12…230 V ACLoad typeohmic, inductiveDistributed clocks–Max. output current0.5 ASwitching timesin zero crossing, 0.1…10 msFrequency range47…63 HzSurge voltage protection> 275 VPeak current40 A (16 ms), 1.5 A (30 s)Standby current0.6 mALeakage current (OFF state)typ. 0.8 mA, max. 1.5 mASwitch-on time0.1…10 ms, zero crossingSwitch-off timeT/2Max. residual voltage1.5 V (60 mA…1 A), 150 Ω (< 60 mA)Current consumption E-bustyp. 120 mAElectrical isolation500 V (E-bus/field voltage), 3750 V AC (1 min.)Current consumption power contacts–Bit width in the process image2 outputsConfigurationno address or configuration settingSpecial featuressuitable for conventional blind motorsWeightapprox. 55 gOperating/storage temperature0…+55 °C/-25…+85 °CRelative humidity95 %, no condensationVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Protect. class/installation pos.IP 20/variablePluggable wiringfor all ESxxxx terminalsProduct announcementestimated market release on request
