ESN Type 8521 Potential Monitoring Device

ESN

Product Code: Type 8521
Artikelnummer: 210100
Brand: ESN



GET OFFER: info@imtek.com.tr

Description for ESN Type 8521 Potential Monitoring Device

Potential monitoring device as per DIN EN 50122 part 1 / VDE 0115 part 3As protection from dangerous body currents generated from contact voltages/tapping voltages,maximum voltages have been stipulated depending on the effect time. Technical Data Dimensions W / H / D 150 / 73 / 113 mm Housing material Terminal board: polycarbonate   lower section: ABS Fastening 2 drilled holes as per drilling tem-   plate Standard support rails as per   DIN EN 50022 Protection Housing: IP 40; terminals: IP 10 Connections 2 x 2.5 mm2 solid to DIN 46288 or   2 x 1.5 mm2 Ambient temp. - 20°C to + 60°C Power supply AC 19.2 ... 253 V, 50 – 60 Hz, ? 5.5   VA   DC 19.2 ... 253 V, ? 2.5 W Measuring input ? 1500 V, continuous; resistance:   approx. 2 M? Relay outputs 2 change-over contacts (u), poten-   tial-free   voltage       current     cos ?   AC 250       V4.0 A      > 0.7   DC 120 V    1.0 A        ohmic load Displays Network LED green   K1: LED yellow   K2: LED yellow   voltage level: bar graph array Test voltage Supply voltage - measuring voltage   outputs: 6 kVe? Input voltage DC 50 V < UM < DC 90 V   K1 switches after 295 ... 299 s   (workshop)   DC 100 V < UM < DC 140 V   K1 and K2 switch after 295 ... 299 s   UM > DC 140 V   K1 and K2 switch jointly as per   diagram   UM > DC 660 V   K1 and K2 switch after max. 30 ms   AC 25 V < UM < AC 40 V   K1 switches after 295 ... 299 s   (workshop)   AC 50 V < UM < AC 70 V   K1 and K2 switch after 295 ... 299 s   UM > AC 70 V   K1 and K2 switch jointly as per diagram   UM > AC 842 V   K1 and K2 switch after max. 30 ms Diagram see overleaf Ordering Information Type 8521 Order No. 210100

Recommended Products For ESN


ESN Type 8531/8532/8533 Terminating Resistors
ESN Type 8908 Installation Cabinet
ESN Type 8513 Control Unit
ESN Type 8516 Control Unit
ESN Type 8546-HLV Adjustable Current Sensor
ESN Type 8431 Temperature Monitor TW 50
ESN Type 8558 Fuse Box
ESN Type 8513 Control Unit Switch Panel
ESN Type 8539 Voltage Monitor
ESN Type 8901 Potential Protection Unit with Low Voltage Limiter
ESN Type 8546 Adjustable Current Sensor
ESN Type SMAC1 Points Heater
ESN Type 8901 Potential Protection Unit with SIEMENS Low Voltage Limiter and Surge Arrester
ESN Type 8591 Voltage Indicator Relay for 1500 V DC
ESN Type 8901 Potential Protection Device for Floating Grounds with Current Control
ESN Type 8535 Potential Monitoring Device
ESN Type 8971 Earthing Device
ESN Type 8545 Current Relay (60A)
Meidinger 160-4 Blower
HFB BTL 3028 Two Bearing House
Gefran PC-M-0360 0000X000X0N Potentiometer
Hengstler AC58/0812EK.42PGB-F0 Absolute Encoder
Wilkerson B18-04-FHG0 Filter/Regulator
Bimba 060.011 Original Line® Air Cylinder
Stauff SMG-112a-PP-IS-M-W5 1110001573 Clamp Combination
Wilkerson M35 Series Coalescing Filter

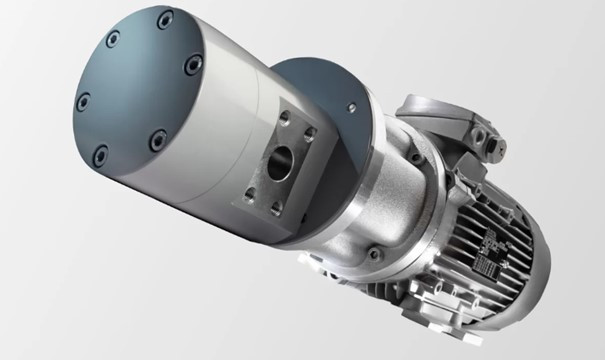

Scherzinger 5040-130-DM-110-4 Hastelloy (R) Gear Pumps 5040
Eaton 4520VQ60A886DC Valve
Netter NHK Series High-Frequency Impactor
American Industrial EAB-1203 Heat Exchanger
PCM 60A24CT API 676 Progressing Cavity Pumps
Alfa Laval 9613360853 UNIQUE SSV TO DN-65 002 W 0.8/BLASTED EPDM SHUT OFF TANK OUTLET NC

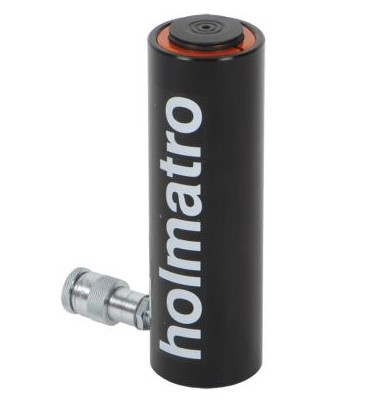

Holmatro HAHC150H25 Aluminium Hollow Plunger Cylinder
