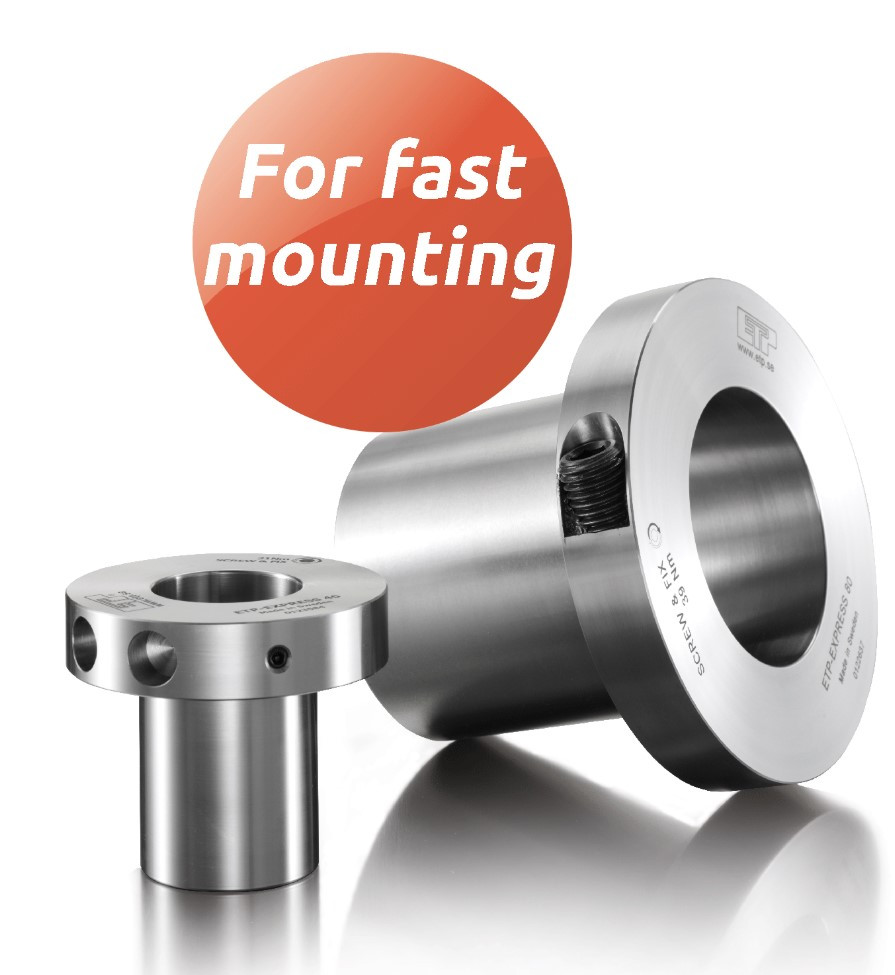

ETP EXPRESS 20 Hub-Shaft Connection

ETP

Product Code: EXPRESS 20
Brand: ETP



GET OFFER: info@imtek.com.tr

Description for ETP EXPRESS 20 Hub-Shaft Connection

ETP-EXPRESS is a hydraulic connection which has only ONE screw for pressurising.It is especially suitable for repositioning of the hub fast and accurately. The screw is tightened in the radial direction, this means no space is used along the shaft for mounting tools. Other components can be mounted on the shaft all the way up to the flange. ETP-EXPRESS has extremely small built-in dimensions which makes a compact design possible.Construction ETP-EXPRESS is a hydraulic connection which consists of a double-walled hardened steel sleeve filled with a pressure medium and a flange. The flange part contains screw and piston with seals to maintain pressure. Operation When the pressure screw is tightened, the double-walled sleeve expands uniformly against shaft and hub and creates a rigid joint. Dismantling is done by loosening the screw. ETP-EXPRESS returns to its original dimensions and can easily be dismantled
