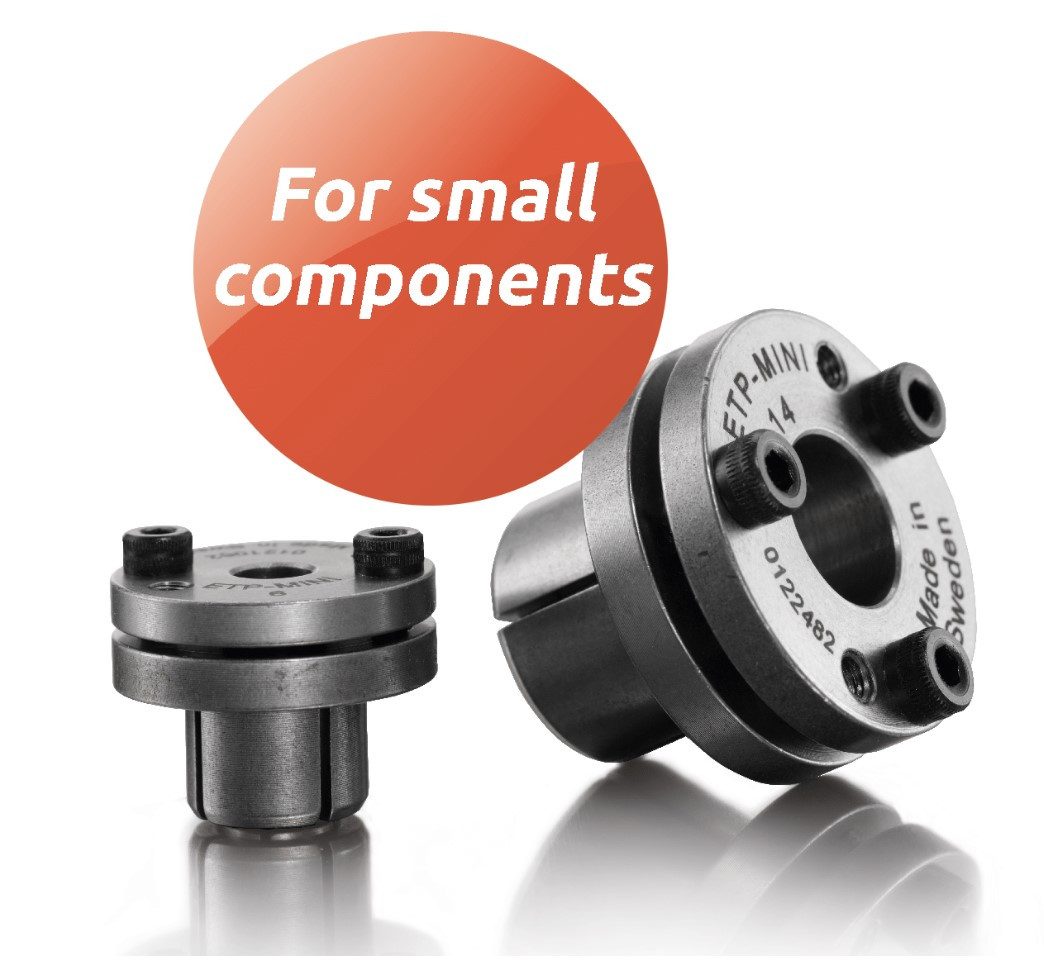

ETP MINI R-6 Hub-Shaft Connection

ETP

Product Code: MINI R-6
Brand: ETP



GET OFFER: info@imtek.com.tr

Description for ETP MINI R-6 Hub-Shaft Connection

Quick compact fastening of small components!ETP-MINI is a mechanical connection which is the best choice for mounting small components quick and easy. Far superior to keyways or setscrews as it gives an adjustable, backlash free joint.  ETP-MINI is also available in stainless, type R, suitable for the food and medical industries! Construction ETP-MINI is a mechanical connection which consists of two, partly slotted, conical steel sleeves (type R stainless) and cap head clamping screws (type R stainless). Operation By tightening the screws, the inner sleeve is pressed against the shaft and the outer sleeve against the hub, thus forming a rigid joint. When dismantling one, or if necessary, two of the screws are moved to the threaded dismantling holes in the flange. By tightening, the sleeves will separate and the joint will easily loosen. ETP-MINI type R has one screw more than ETP-MINI in order to transmit the same torque (lower tightening torque for stainless screws).
