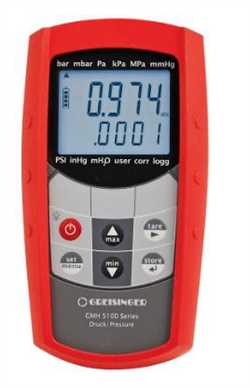

Greisinger GMH5130 Water-proof Pressure Handheld Device

Greisinger

Product Code: GMH5130
Artikelnummer: 600027
Brand: Greisinger



GET OFFER: info@imtek.com.tr

Description for Greisinger GMH5130 Water-proof Pressure Handheld Device

Water-proof pressure handheld device with 1 sensor connectionHIGHLIGHTS:Peak value detection (1000 measurements / s)Large double display with background illuminationCalibrated and fully interchangeable pressure probesincl. calibration protocolGENERAL:This handheld instrument is a valuable tool for demanding pressure measurements. Extremely robust plug connections, the silicone protection cover, backlight and a water-proof design allow its usage in harsh industrial and field environments.APPLICATION:Industry and craft, HVAC: heating, ventilation, air-conditioningLeakage test / pressure testChimney draft measurement: under pressure, leakage test at buildings (ie 4 Pascal test)Measurements of gas and oil firingsAutomobile trade, hydraulic analysis (peak pressure)SPECIFICATIONS:Sensor connections:1Suitable probes:GMSD / MSD sensors, available ranges (resolutions) from -1,999 ... 2,500 mbar (0.001 mbar) to 0 ... 1000 bar (1 bar)Display range max .:-19999 ... +19999 digitDisplay unit:depends on measuring range selection and sensor: mbar, bar, Pa, kPa, MPa, mmHg, inHg, PSI, mH 2 OMeasuring frequency:4 measurements / s or 1000 measurements / s with peak value memoryAverage filter:adjustable: 1 ... 120 sAccuracy:± 0.1% FS ± 1 digitScope of supply:Device, battery, calibration protocol, manual
