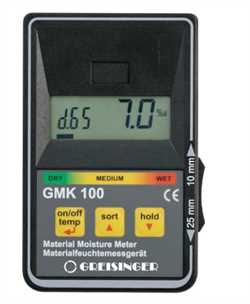

Greisinger GMK100 Measuring Device Moisture

Greisinger

Product Code: GMK100
Artikelnummer: 600105
Brand: Greisinger



GET OFFER: info@imtek.com.tr

Description for Greisinger GMK100 Measuring Device Moisture

Measuring device moisture in wood and buildingsHIGHLIGHTS:Moisture display in percentAcoustical and visual moisture rating18 material characteristics for wood and building materials2 different measurement depthFor wood and building moistureGENERAL:The GMK 100 is a capacitive material moisture measuring device with direct moisture display in percent. It is optimally suited for home and handcraft. Depending on the application, it is possible to display the material moisture “u” or the water content “w”. The humidity is measured by a measuring plate on the back of the device. With a sidemounted switch the measuring depths can be changed. With the help of measurements in different depth a statement could be made if for example the material dries already or if the moisture is just on the surface of the material.APPLICATION:Humidity measurement and indication of wood, concrete, screed, plaster, etc.SPECIFICATIONS:Display:2 displays for material and measured value, in% material moisture or in% moisture content, backlightMoisture ratingVisual:Rating of the moisture in 6 levels from WET to DRYAcoustic:Signal toneMeasurement depths:10 mm and 25 mmCurves:18 characteristic curves for wood (with assignment table for wood species) and popular materials, additionally reference curve (rEF) for high-resolution relative measurementsScope of supply:Device, battery, calibration protocol, manual
