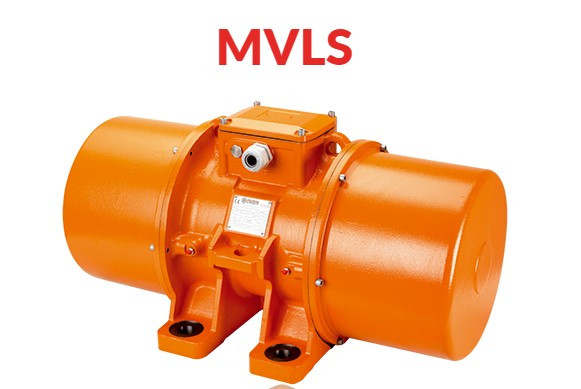

Italvibras MVLS 06/8100-S90 602960 Low Speed Electric Vibrator

Italvibras

Product Code: MVLS 06/8100-S90
Artikelnummer: 602960
Brand: Italvibras



GET OFFER: info@imtek.com.tr

Description for Italvibras MVLS 06/8100-S90 602960 Low Speed Electric Vibrator

Power supply Three phase tension from 200V to 690V at 50Hz or 60Hz; variable frequency from 20Hz to the nameplate frequency, at constant torque, with frequency inverter. Polarities 8, 10 & 12 pole standard, 6 pole on request. Reference Regulations and Directives Low Voltage Directive 2006/95/CE; EN/IEC 60034-1, UL 1004-1, CSA C22.2 No.100, NEMA MG-1 Functioning Continual service (S1) at maximum declared centrifugal force and electric power. Intermittent services are also possible depending on the type of vibrator and on the operating conditions. For detailed information, contact our technical assistance office. Centrifugal force Range extended to 9500 kgf. (93.7 kN), adjustable in continuous linear mode varying the position of eccentric weights. Mechanical protection IP66 according to IEC/EN 60529. Protection against mechanical impacts IK 08 according to IEC/EN 62262 Insulation class Class F (155°C), class H (180°C) on request.Tropicalisation Standard on all vibrators, with “drop by drop” trickle system. Ambient temperature From -20°C to +40°C; higher or lower temperatures are possible on request. Vibrator thermal protection With thermal detectors with thermistors PTC 130°C as standard on the whole MVLS range. Upon request different temperatures thermistors are available, as well as bimetallic thermal protection and anti-condensation heaters. Fixing of the vibrator In all positions and therefore without any restriction. Lubrication All vibrators are correctly lubricated at the factory and do not require further lubrication at their start-up. Terminal box Large terminal box to facilitate electrical connection. Special shaped terminals allow for the power supply cable to be secured, whilst protecting it from loosening. Electric motor Three-phase asynchronous type. Designed for obtaining maximum torque values both at starting and when fully operational, to respond to the requirements of vibrating machines and particularly to those with dual mass for resonance systems. Insulated windings by means of the “drop by drop” trickle system with class H resin.
