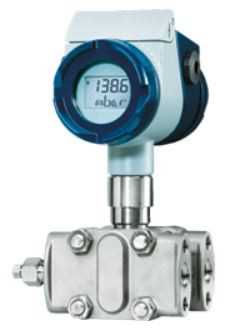

JUMO dTRANS p02 DELTA Pressure Transmitter with Display (404382)

JUMO

Product Code:
Brand: JUMO



GET OFFER: info@imtek.com.tr

Description for JUMO dTRANS p02 DELTA Pressure Transmitter with Display (404382)

FeaturesMeasuring ranges: 0 to 60 mbar DP to 0 to 25 bar DPFor differential pressure, filling level, and flowFor non-aggressive and aggressive gases, vapors, and liquidsTemperature of medium: -40 to +100 °CLinearity: ? 0.1 % of end valueExcellent long-term stability of < 0.1 % per yearLoad on one and both sides up to a static pressure of 160 bar; up to 420 bar as an optionExcellent temperature compensationOperation on site or using HART protocolSignaling occurs if the measuring range is exceeded or not met; signaling also occurs in the event of sensor exceedance and sensor faultsAccessories: pressure separator, valves, setup programATEX approval available as an optionDisplay on the display Pressure in 13 different units; measured value in % or scaled with a choice of measuring unitOutput current in mASensor temperature in °C or °FMeasured value error, measured value outside of measuring rangeMinimum pressure and maximum pressure (drag indicator)Pressure and sensor temperature can be displayed simultaneously Settings via the operating keys Zero point correctionStart and end of measuring without pressure specification (blind setting) or with pressure specification: simple, time-saving, convenientAttenuationCurrent-generator functionOutput signal in event of malfunction: adjustable to 3.85 mA or 21.5 mALock function for keysReset function for minimum and maximum measured values (drag indicator)Linear / square-rooted characteristic lineDensity correction for various measuring mediaMeasuring units for pressure and temperature Customer benefits Process reliabilityThe parts coming into contact with the medium made of stainless steel (optionally made of NiMo alloy or Monel with the use of a pressure separator) and a system that is cavity-free reflect the resistance to aggressive media (among other things). The measuring device is very precise (characteristic line deviation of 0.1 %) and offers a high long-term stability of <0.1 % per year. Uncomplicated and time-savingThe measuring device can be operated reliably and easily either on site or set through a more easy-to-use setup program (HART interface). ApplicationsWater and wastewater technologyPaper productionOil and gas industryPower stationsChemical and petrochemical industriesFood and beverage industryPharmaceutical industry
