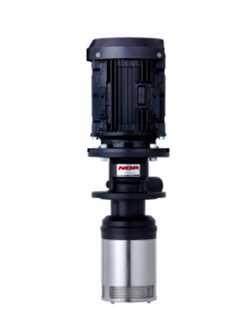

Nippon I155 NOP Coolant Unit C Series

Nippon

Product Code: I155
Brand: Nippon



GET OFFER: info@imtek.com.tr

Description for Nippon I155 NOP Coolant Unit C Series

Series name C SERIES CT(Specification: Double cyclone filter + TrochoidTM pump) C SERIES CI(Specification: Cyclone filter + Impeller pump) Specifications for pump proper Pump model T20850Hz / 60Hz T21650Hz / 60Hz I155 I152 I305 I302 Flow rate (?/min) 12.0 / 14.4 24.0 / 28.8 150 (Maximum) 300 (Maximum) Compatible fluid Water-soluble coolant fluid Maximum allowable viscosity (mm²/s)(Filtring performance) 22 22 Liquid temperature range (?) -5 ? 60 Rotational speed (r/min) 1500 / 1800 3000 3600 3000 3600 Maximum pressure (MPa) 2.0 - Total pump head (m) - 55 40 65 45 Filter type Cyclone × 2 stages Cyclone × 1 stage Filtring performance 100µm: 99.9%?50µm: 95% Water-soluble coolant fluid 100µm?99.9% (Silica sand?Specific weight 2.7) Straight oil 100µm?80% (Silica sand?Specific weight 2.7) Contaminant drain port flow rate (l/min) 30?40(Pressure 0.02MPa) 20?35(Pressure 0.02MPa) 25?40(Pressure 0.02MPa) 45?60(Pressure 0.02MPa) 50?70(Pressure 0.02MPa) Remarks Install a plate filter of #18 or finer mesh on the suction end of the tank. Painted color of the pump section Flat black (Approximately Munsell N1.0) Approximate weight (kg) 16 23 34 33
