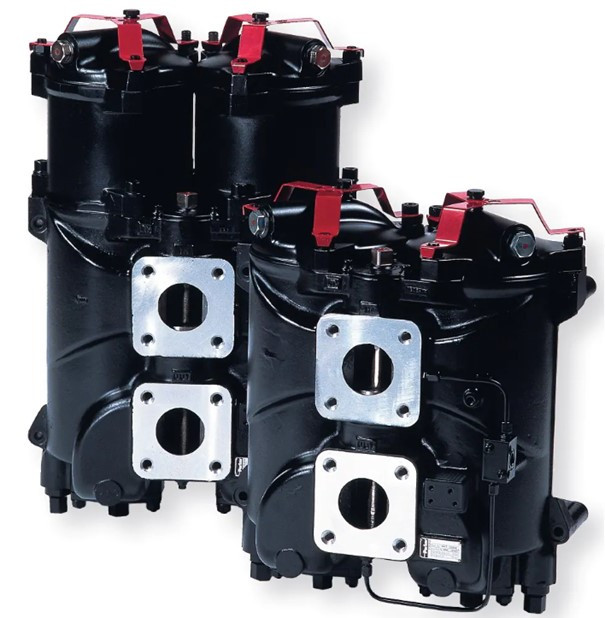

Parker DF20353015NVNHD651 Duplex Filter

Parker

Product Code: DF20353015NVNHD651
Brand: Parker



GET OFFER: info@imtek.com.tr

Description for Parker DF20353015NVNHD651 Duplex Filter

Low Pressure In-Line Duplex Filter - DF2035 SeriesThe DF2035 is a series of Light weight, low pressure, high flow capacity duplex filters for gear and diesel engine lube system applications. Suitable for flows up to 800 l/min and pressures up to 8 bar.Technical Specifications Seal Material:FluorelastomerBypass Valve Pressure Rating:2,0 barPort Type:DN65/PN16 ref. Square flange & Blind counter flangeOptions:With bypass Mounting Type:InlinePressure Rating:34 bar, 0-500 psi barFlow Rate:500-1000L/minHousing Material:AluminiumOperating Temperature:-20/+120C Items marked with an asterisk * in the drop-down menus are standard choices. The DF2035 series is a Light weight, high flow capacity duplex filter for gear and diesel engine lube system applications. Its aluminium housing offers a light weight solution for high capacity filtration. The DF2035 filter has Several filtration media options and high dirt holding capacity: It can hold up to three filter elements per reservoir. Two housing lengths available. Maximum flow rate up to 1800 l/min. Maximum pressue 10 bar. 160 mm square flange connections. Applications: • Industrial gear systems • Diesel engine lubricating systems
