Parker DF21102035WVM3HD801P2 Duplex Filter

Parker

Product Code: DF21102035WVM3HD801P2
Brand: Parker



GET OFFER: info@imtek.com.tr

Description for Parker DF21102035WVM3HD801P2 Duplex Filter

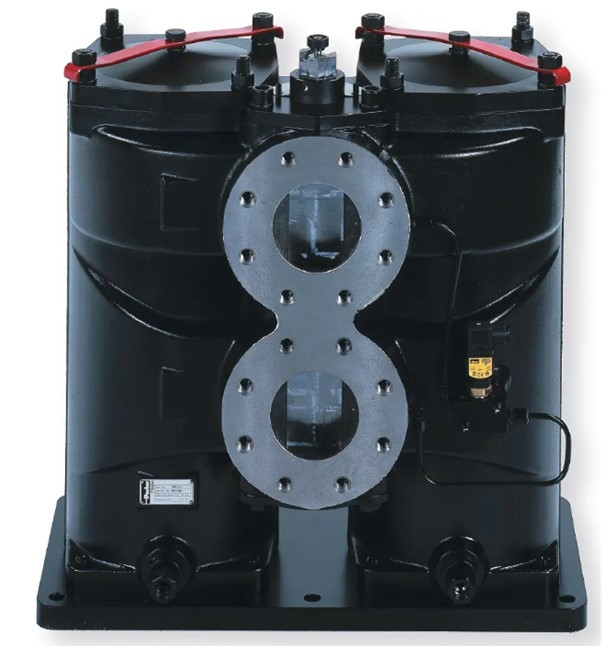

Low Pressure In-Line Duplex Filter - DF2110 SeriesThe DF2110 duplex filter is a cast iron duplex filter for marine applications. Suitable for flows up to 1200 l/min and pressures up to 30 bar.Technical SpecificationsSeal Material:FluorelastomerMounting Type:InlineFlow Rate:1000-1500 L/minOperating Temperature:-20 / +120 °C,-20/+160°CPort Type:DN80/PN25Pressure Rating:0-34 bar,0-500 psi barHousing Material:Cast ironItem Information Items marked with an asterisk * in the drop-down menus are standard choices. The DF2110 is a heavy duty performance duplex filter. The elements of the DF2110 have a high dirt holding capacity, yet a low pressure drop. The heavy duty cast iron housing and several element media options mean a multitude of suitable applications. Maximum flow rate up to 1200 l/min and extended housing available for high viscocity oils and longer service intervals. Maximum pressue 30 bar. DN80-PN25 connections. Applications: • Marine gear lubricating systems • Propulsion systems • Diesel engine lubricating systems • Heavy fuel oil safety filter
