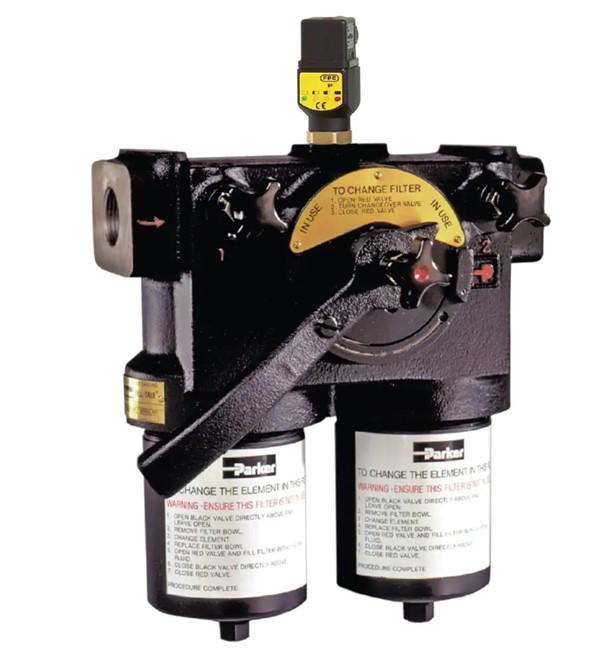

Parker DF401035WVT1KR241 Duplex Filter

Parker

Product Code: DF401035WVT1KR241
Brand: Parker



GET OFFER: info@imtek.com.tr

Description for Parker DF401035WVT1KR241 Duplex Filter

Medium Pressure In-Line Duplex Filter - DF40 Series | #DF40110QEVPXR242The DF40 duplex filter is a cast iron duplex filter for Marine applications. Suitable for flows up to 200 l/min and pressures up to 40 bar.Technical SpecificationsFlow Rate:200 l/min,0-250 L/minMounting Type:InlineHousing Material:Cast Iron (GJS)Seal Material:FluorelastomerPressure Rating:0-34 bar,0-500psi barOperating Temperature:-20 / +120 °C,-20/+160 °CItem Information Items marked with an asterisk * in the drop-down menus are standard choices. The DF40 duplex filter gives you extra flexibility in installation because it can be serviced from the top or the bottom. The durable cast iron housing makes it an especially good fit for engine room applications. The DF40 with flow up to 200 l/min and pressure up to 40 bar contains Eco elements which help to save the environment and reduce the customer's disposal costs as no metal parts are included. This filter also disposes of a double indicator port and test connections which can be isolated with shut-off valves for possible assembly and maintenance. Applications: • Fuel filter for diesel engines up to 10 MW • Lubrication filter for gearboxes and propulsion systems • Medium pressure duplex filter in hydraulic systems • In-line return duplex filter in hydraulic systems
