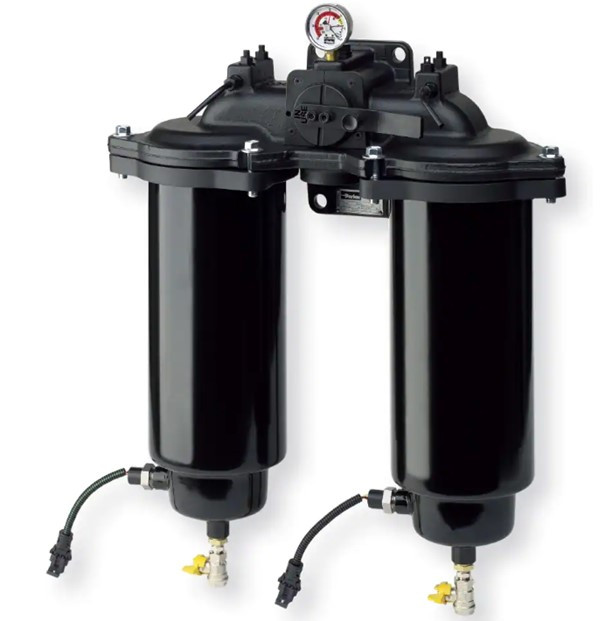

Parker DFBO1010FSVAFMD301 Duplex Filter

Parker

Product Code: DFBO1010FSVAFMD301
Brand: Parker



GET OFFER: info@imtek.com.tr

Description for Parker DFBO1010FSVAFMD301 Duplex Filter

Low Pressure In-Line Duplex Fuel Filter - DFBO SeriesThe DFBO is a series of low pressure duplex Fuel Filters for diesel filtration in Marine applications. Suitable for flows up to 90 l/min and pressures up to 10 bar.Technical Specifications Seal Material: Fluorelastomer Indicator Pressure Setting: 30 InHg (-100 Pa), No indicator bar Mounting Type: Inline Pressure Rating: 0-34 bar, 0-500 psi psi Flow Rate: 0-250 L/min Housing Material: Cast iron/Steel Operating Temperature: 0 / +80, 0 / +60 °CItem Information The DFBO filter brings a duplex version of the Racor® FBO filters to an engine room environment for continuous diesel filtration. The new duplex design ensures that fuel is efficiently filtered at all times. The cast iron head and steel bowls mean that it is perfect for use in marine applications. The DFBO comes in two bowl lengths, allowing diesel flows up to 90 l/min. Depending on the elements inside, the unit can be used as prefilter, water separator/particle filter or as water absorption filter. The DFDBO filter is easy to service: no special tools are required. Applications • Fuel systems on diesel engines • Marine fuel docks • Diesel fuel dispensing system
