Reich Type AC…D TK ARCUSAFLEX ® Highly Flexible Coupling

Reich

Product Code: Type AC…D TK
Brand: Reich



GET OFFER: info@imtek.com.tr

Description for Reich Type AC…D TK ARCUSAFLEX ® Highly Flexible Coupling

Advantages -Very high torsional flexibility with a linear torsional deflection characteristic -High torsional vibration and shock load absorbing capability -Backlash-free torque transmission -Ease of assembly thanks to the plug-in type design with ample axial float -Compensation of major misalignments -Torque limitation protecting the drive against overload -ATEX General Technical Description The ARCUSAFLEX ® coupling (short form: AC) is a highly torsionally flexible flange coupling with an axial plug-in facility, providing a torsionally soft connection between an internal combustion engine and a driven machine. The highly flexible torque transmission characteristic is achieved by a disc-shaped rubber element that is subjected to a torsional load and enables both the absorption of high torsional vibrations and the compensation of major misalignments. Various vulcanisates are available to achieve optimum adaptation to the given application conditions: A natural / synthetic caoutchouc mixture is the standard version for application temperatures of up to 80 °C, more heat resistant mixtures for up to 100 °C / 120 °C and a silicone mixture for higher application temperatures up to 130 °C. The inside diameter of the rubber element is vulcanized directly to a hub body or bolt-on sleeve. The toothed profile on the circumference of the element provides a virtually backlash-free, positive plug-in connection to the coupling flange when in service. The ARCUSAFLEX ® flange coupling series covers a torque range from 210 Nm to 72 000 Nm. Element versions of different dynamic torsional stiffnesses are available for optimizing the torsional vibration range. The flange connection dimensions of ARCUSAFLEX ® couplings comply predominantly with the SAE J 620 and DIN 6281 standards. Other flange dimensions or overall lengths can be provided on request. Shaft-to-shaft connections when required can be met by ARCUSAFLEX ® shaft couplings which consist of an ARCUSAFLEX ® flange coupling of the standard design equipped with a second hub. Type approvals from a number of leading classification society have been obtained. If required, couplings complete with a fail-safe device can also be supplied. ARCUSAFLEX ® couplings comply with ATEX explosion protection. They are certified according to directive 2014 / 34 / EU and may be used in hazardous locations (categories M2, 2 + 3). ATEX documentation to supplement the operating instructions is available on request.

Recommended Products For Reich


Reich Type AC...F2 ARCUSAFLEX ® Highly Flexible Coupling
Reich Type MMS…T Multi Mont Sella Flexible Claw Coupling
Reich Type - B - CS TOK Coupling System
Reich Type AC…D TK ARCUSAFLEX ® Highly Flexible Coupling
Reich ELBO Flexible Pin-type Coupling
Reich Type AC…D F2 ARCUSAFLEX ® Highly Flexible Coupling
Reich Type MMS…W Multi Mont Sella Flexible Claw Coupling
Reich Type AC…F2 with electromagnetic coupling ARCUSAFLEX ® Highly Flexible Coupling
Reich FLEXDUR – HighSpeed Torsionally Rigid Coupling
Reich Multi Cross Rillo Highly Flexible Tyre Coupling
Reich Type AC-VSK...F1W ARCUSAFLEX-VSK Highly Flexible Coupling
Reich Type - B TOK Coupling System
Reich Type AC…F2 with splined taper bush ARCUSAFLEX ® Highly Flexible Coupling
Reich Multi Mont Sella-Highspeed Flexible Claw Coupling
Reich Type AC…F2 DS ARCUSAFLEX ® Highly Flexible Coupling
Reich RCT Torsionally Stiff Flange Coupling
Reich FLEXDUR Torsionally Rigid Coupling
Reich REIBO Flexible Pin-type Coupling
Gefran LT-H-0110-P 0000X000N00 Potentiometer
Alfa Laval 9613360000 UNIQUE SSV 25/1 INCH 200 W 0.8/BLASTED EPDM SHUT OFF NC
Gefran LT-F-0110-P 0000X000X0N Potentiometer
Gestra VZ 10 Pneumatic Rail Hook
Alfa Laval 9612075332 VALVE LKB-2 DN50 DIN M/NL FPM 304L
Ako Armaturen VF150.03X.33.30LA DN150 Valve
Scherzinger 3040-045-B-DM-12-6-Exe Hastelloy (R) Gear Pumps 3040
Sumitomo Invertek Optidrive P2 Inverter
Fife DSS Digital Sensing System
Gefran LT-M-0110-S L000X000A00 Potentiometer
Sai GM2-630-7H-D40 Hydraulic Motor
Gemü Gemü 550 15D6034 1012G1RB403 Globe Valve
KSB MCPK150-125-200 GC MP2 A Pump
Parker 30PD120QBE2KS161 Duplex Filter
KWD BOKU-N-A St 630-16v (x50) - 36 H7 (x40)- KWN 22014 dy Coupling
Scherzinger 4030-450-B-DM-12-8-Exe Stainless Steel Gear Pumps 4030
Megatron RP 19 R1K W3% L0,5% DM4 Wire Wound Potentiometer
KSB BPI 322/03D+UMAI 150-6/22 2.5 SQMM DOL.( Pump
Tecsis EZE15X004 Analogue Amplifier Universal mV/V
Goyen CC200 Cartridge Cleaning Cone
PSP Pohony EKS 16 disc clutch
Eurotherm ATV930D22N4 Frequency Inverter Eurotherm ATV930D22N4 Frequency Inverter

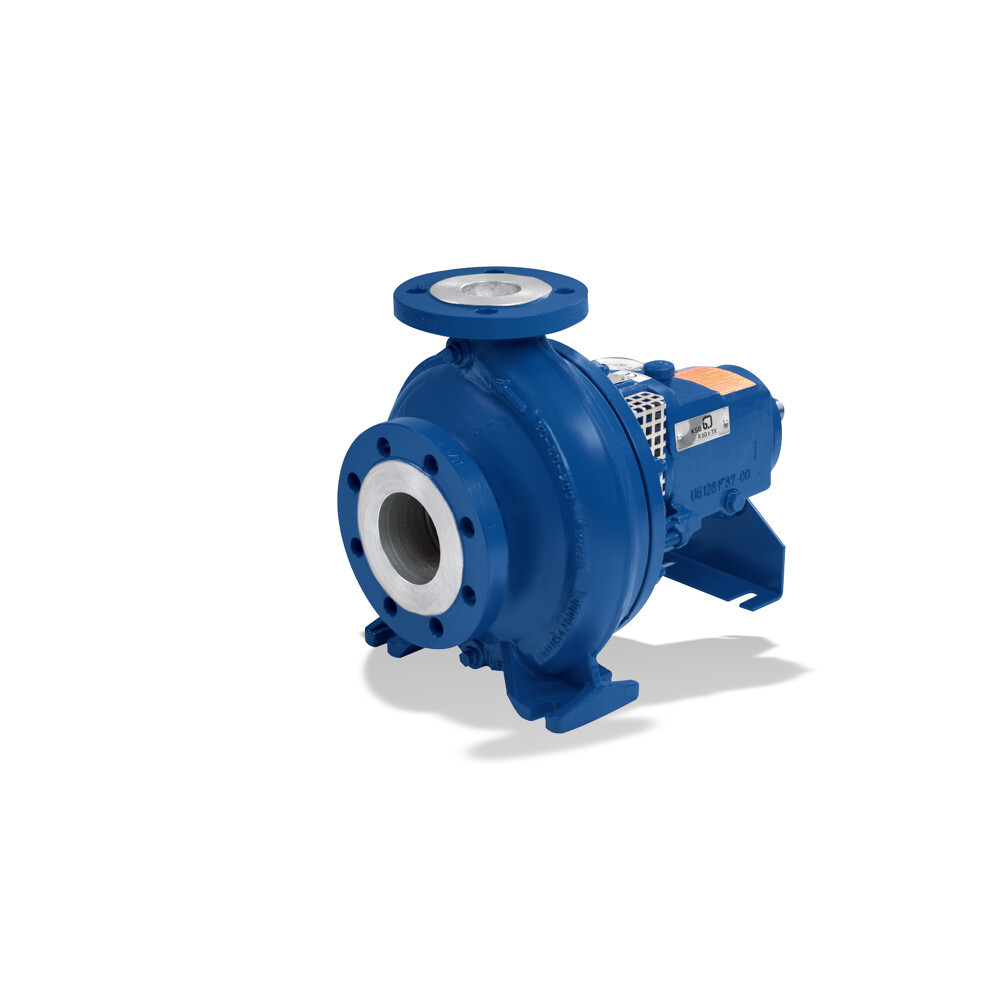

KSB MCPK065-040-125 EE MP2 A Pump

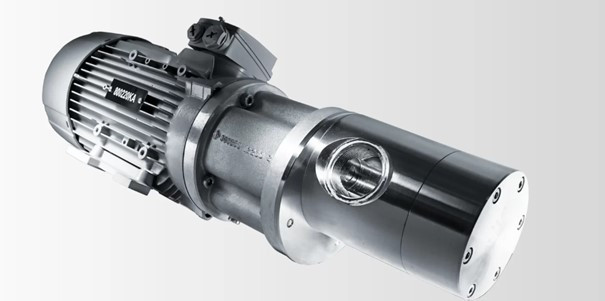

Scherzinger 5030-130-DM-55-4-Exd Stainless Steel Gear Pumps 5030
