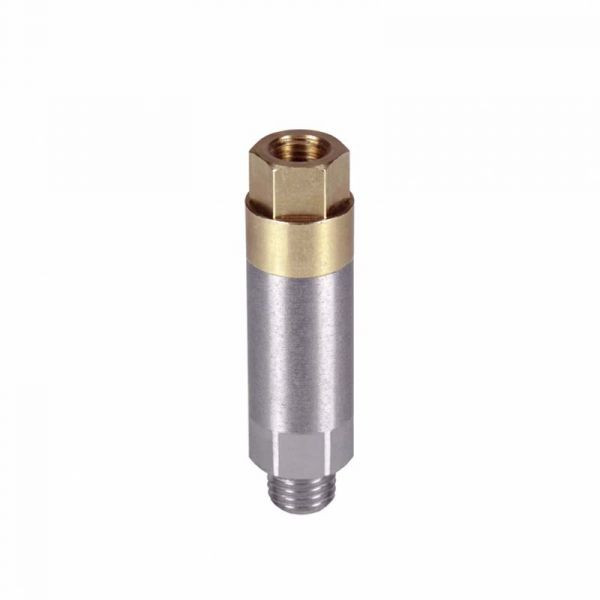

Vogel 351-100-40000-00 Single-line - Piston Metering Device
Lubrication System Type:
Single-line lubrication systems
Product Description:
Designed for installation in manifolds, series 351 single-port, pre-lubrication metering devices were developed for use with single-line, centralized lubrication systems for oil and fluid grease. When used in combination with one- to six-port manifolds, these metering devices provide flexible options for lubrication system design. Customized manifolds for series 351 metering devices are available in aluminum and stainless steel.
Technical dataFunction principlepre-lubrication metering device 1)Outlets1Metering quantityoil0,05-0,60 cm³0.0030-0.0366 in³fluid grease0,10-0,60 cm³0.0061-0.0366 in³Lubricantmineral and synthetic oil, 20-2000 mm²/s, 0.031 to 3.100 in²/s
fluid grease NLGI 000, 00Operating temperature0 to +80 °C+32 to 176 °FOperating pressuremin. 6 bar
max. 80 barmin. 87 psi
max. 1160 psiRelief pressuremax. 3 barmax. 43.5 psiMaterialaluminum, stainless steel, brass (oil)
nickel-plated brass (grease)
flat washer (copper, stainless steel), FKM
(FPM)/NBRConnection main linedifferent fittings for pipeø 6-12 mm0.236-0.472 insolderless pipe connection
for threadsG 1/8; G 1/4; M 10 × 1 or M 14 × 1,5
(DIN 3862)Connection outlet
pipe ø 4 mmø 0.16 inch
metering nipple (VS) with SKF quick connectormetering nipple (00) for solderless pipe connectionDimensionsmin. 43,5 × 12 mm
max. 53 × 12 mm1.713 × 0.472 in
2.086 × 0.472 inMounting positionany1)Pre-lubrication metering device = Direct injector
Direct pump pressure dispenses lubricant to the bearingOrder exampleThe product can be configured using a configuration code. The order example shows one possible part number and its explanation.351-000-30000-00Product series 3501 metering pointDesign code 0 (for oil; ø Outlet 2,5 mm; material metering nipple: brass; Elastomer NBR)
Outlet connection 00Metering quantity: 0,05 cm3You can configure the product using the CAD configurator below. This will give you a specific order number as well. For more details please refer to the product catalogue.
