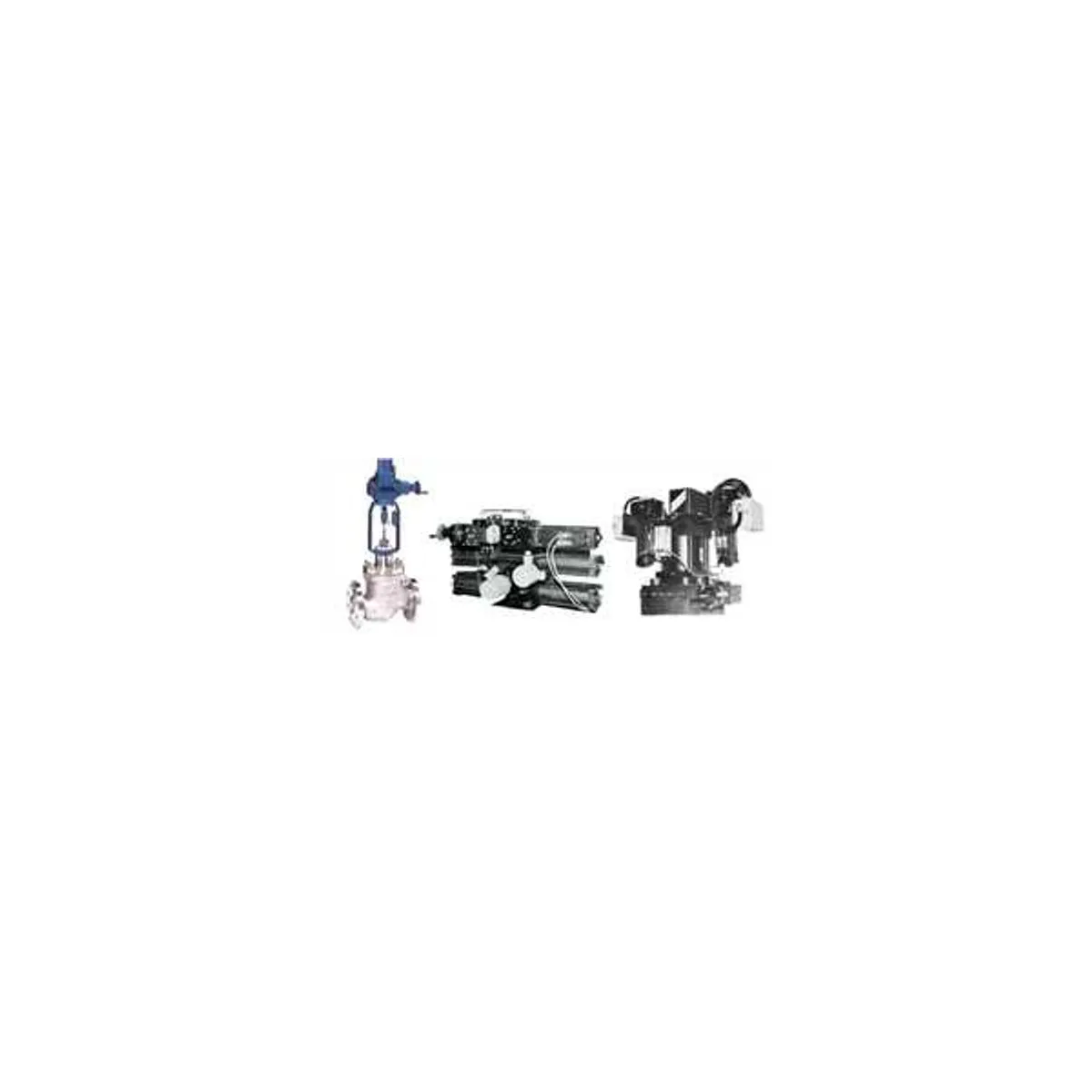

Koso 3800RA Microprocessor Controlled Actuators

Technical Documentation

技术数据表 / 产品文档

  • 目前暂无此产品的技术文档。如需更多信息，请与我们联系。
WhatsApp
品牌
Koso
类别執行器
产品名称Koso 3800RA Microprocessor Controlled Actuators
产品编号3800RA
Visa – Secure credit card payment acceptedMastercard – Secure credit card payment acceptedAmerican Express – Secure credit card payment acceptedDiners Club – Secure credit card payment acceptedDiscover – Secure credit card payment accepted

欢迎联系我们！我们会在 24 个工作小时内（不含周末及节假日）确认库存状态和预计交期。

产品描述

Koso的产品（包括Koso 3800RA Microprocessor Controlled Actuators）通过平行进口渠道采购，并快速可靠地交付给United States的客户。Imtek Engineering以具有竞争力的价格提供正品Koso零部件。即使Koso 3800RA Microprocessor Controlled Actuators未在我们的网站上列出，您也可以随时申请报价——我们的团队将迅速响应并为您提供专属报价。

3800LA/3800RA/3800DA: Microprocessor Controlled Actuators

This Series represents intelligent digital actuators targeting the control method of the next generation.
They are process control devices of multi-function hybrid structure incorporationg computer functions to fully utilize advan-tages of both electric and hydraulic types, ie., high speed and large output. Major components are digital motor, gear pump and electronic circuit. Unique hydraulic Flow Match System (pat-ented) controlled by direct digital signals secures stabilized high speed response and high accurancy action. Fail safe upon power loss. Furthermore, with three kinds of power modules that have redundancy and high power, electric safety is enhanced. With this Series, we have come closest ever to the concept of "Maintenance free."

Specifications
TypeLinear Stem Motion TypeRotary Stem Motion TypeCrank Arm Motion Type
3800LA3800RA3800DA
Max. output533787 N11300 N·m11300 N·m
Power sourceAC100V 50/60 HZ
Options: AC120V, AC220V, AC440V, DC48V, DC24V
Max. stroke/angle550mm
Control signal4 to 20mA DC, Direct-digital, Pulse, Two position, Manual(up/down push-button)
Environment temp.Actuator: -30 to +70°(Options: +93°)
CONTOROL ENCLOSURE; -40 to +60°
Deadband0.05%(minimum) Selectable at the PCP between 0.05% and 5.0% of calibrated signal span
Positioning accuracy< 0.15% of full stroke
Linearity< 0.15% of full stroke
Repeatability< 0.15% of full stroke
Enclosure typeNEMA 4 × (STD), FM approved Class 1, Div.2, Groups A, B, C & D and NEMA 4 ×
OptionsSpring return type, Position Transmitter, Limit Switches, Manual Override.
